6061 aluminum round tube is a high-strength aluminum tube made of 6061 alloy, with excellent corrosion resistance and good processability, suitable for a variety of industrial fields. After heat treatment, 6061 aluminum round tube has excellent strength and toughness, and is often used in aerospace, automotive industry, building structure and machinery manufacturing and other applications that require high strength and light weight.
MASTAR 6061 T6 aluminum round tube and other hot selling tempers

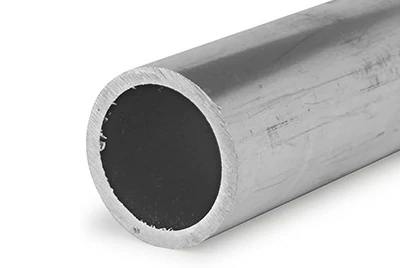

6061 T6 aluminum round tube
T6 tempering involves casting aluminum at high temperatures, rapidly cooling it in a liquid bath, then heating it at a lower temperature for several hours. This process enhances the strength and structure of aluminum tubes.
- Higher strength: 6061-T6 aluminum tubes are treated to provide high strength for high-load structural applications.
- Better mechanical properties: It maintains high strength while having good processability and is suitable for a variety of processes.
- Excellent corrosion resistance: Excellent performance in wet environments, suitable for outdoor and marine components.
- Minimal deformation under high load , ensuring structural stability.
- Most cost-effective: superior performance, moderate cost, high cost performance, and hot-selling tempers.

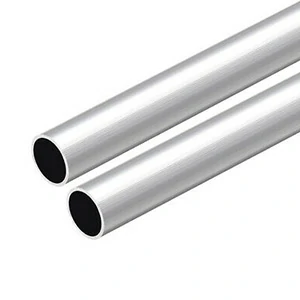

6061 T4 aluminum round tube
Features: after solution heat treatment and natural aging, it reaches balanced strength. It has good formability and medium strength.
Applications: suitable for applications requiring further forming and processing such as aerospace components, automotive structures and high-pressure vessels.

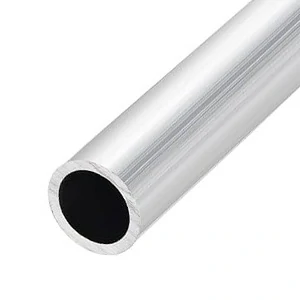

6061 O aluminum round tube
Features: fully soft state (annealed), with maximum ductility and minimum strength.
Applications: Suitable for applications needing high formability and processability but lower strength, such as deep-drawn parts, welded structures, and general manufacturing.

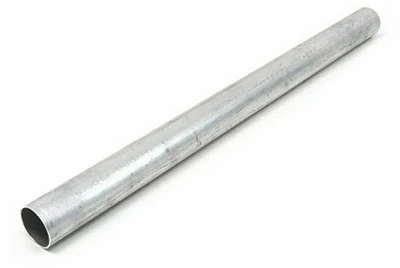

6061 T651 aluminum round tube
Features: After solution heat treatment, stretching, and artificial aging, it achieves high strength and good stability by eliminating residual stress.
Application: suitable for structural applications such as building frames, mechanical parts, etc.

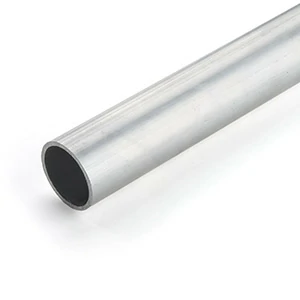

6061 T6511 aluminum round tube
Features: specially used for extrusion products, after solution heat treatment, stretch straightening to eliminate residual stress, and artificial aging treatment. With high precision and high strength.
Application: suitable for extrusion applications that require tight tolerance control, such as aerospace components, industrial equipment brackets, etc.
MASTAR 6061 aluminum round tube product catalog and cooperation areas
With excellent mechanical properties, corrosion resistance and cost-effectiveness, Mastar 6061 aluminum round tube has become the first choice for many industries. We have established long-term cooperative relationships with well-known global companies to ensure that we provide customers with high-quality products and comprehensive technical support to help the successful implementation of various projects. Quick Quote

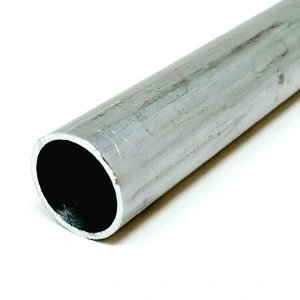

6061 Cold drawn seamless non-hydraulic aluminum round tube
High precision and smooth surface are achieved through cold drawing process, suitable for precision structures, mechanical parts and other applications requiring strict dimensional tolerances.
View more seamless pipe products
6061 Cold drawn seamless hydraulic aluminum round tube
Cold drawn seamless pipes for hydraulic systems undergo heat treatment, hardening, multiple drawing, and annealing to ensure high pressure resistance and sealing. They are tested for breaks or leaks and widely used in aerospace and industrial hydraulic equipment.

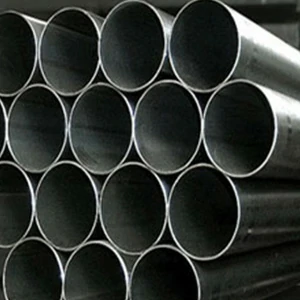

6061 extruded large diameter seamless aluminum round tube——highly recommended
With a maximum diameter of 1320mm, it offers high strength and durability, ideal for demanding structural engineering and heavy industrial applications, such as large frames and load-bearing components. It is especially suited for pipelines in the nuclear power industry.
6061 Extruded seamless aluminum round tube
This aluminum round tube, made by reverse extrusion, is weld-free with a uniform structure and good strength, ideal for high-strength, consistent applications like aerospace, precision machinery, and high-pressure pipelines.
6061 extruded structural aluminum round tube
Extruded structural pipes, unlike seamless ones, have welds from extrusion, offering high processability and low cost, ideal for general engineering projects like building frames and mechanical supports with low strength needs.

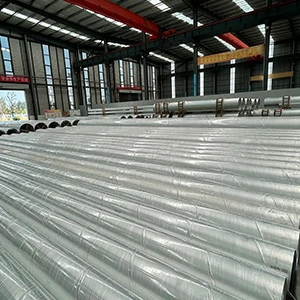

6061 spiral welded large diameter aluminum round tube—patented technology
The maximum diameter can reach 1580mm. It adopts advanced spiral welding technology and is suitable for large pipelines and complex structure projects such as transmission systems and high-pressure vessels.

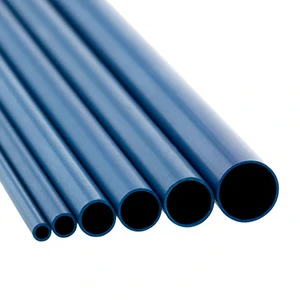

6061 anodized aluminum round tube
After anodizing treatment, it has excellent corrosion resistance and decorative appearance, and is widely used in outdoor structures and architectural decoration. The color adhesion is strong, but the cost is higher.
View more anodized aluminum pipe products

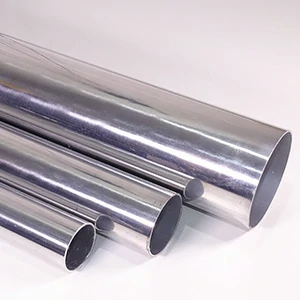

6061 polished aluminum round tube
Its smooth surface and high strength make it particularly suitable for architectural projects and high-end engineering applications that require a beautiful appearance.

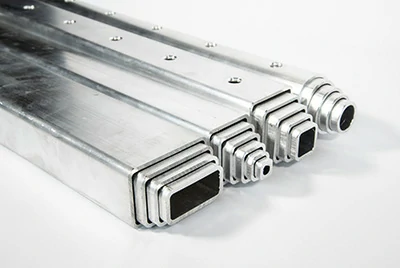

We stock a wide range of 6061 aluminum tubes in various shapes such as round, square, rectangular, and flat tubes, along with options like coil, corrugated, and anodized tubes. Custom wall thicknesses are also available, including thin-wall and thick-wall tubes, as well as functional types like perforated, bent, and threaded pipes.
Click to explore more tubing types or contact us for custom specifications.Quick QuoteMASTAR 6061 aluminum round tube equivalent name and specification parameter table
| Equivalent Name | AW-6061 , 6061 (UNS A96061), EN AW-6061 (EN AW-AlMg1SiCu) |
| 6061 Cold drawn aluminum round tube | AMS 4079 6061-0 Drawn Seamless Aluminum Tube with close tolerances; AMS 4080 6061-0 Drawn Seamless Aluminum Tube AMS 4081 6081-T4 Drawn Seamless Hydraulic Aluminum Tube AMS 4082 6061-T6 drawn seamless aluminum tube; AMS 4083 6061-T6 Drawn Seamless Aluminum Hydraulic Tube; QQ-A-225/8 6061-T6 / T651 Cold finishing bars, tubes and profiles; WW-T-700/6 6061-T6 seamless drawn tube; MIL-T-7081 6061-T6 hydraulic aluminum tube; EN 2392 6061-T6 Aluminum Tube |
| 6061 Extruded Aluminum Round Tube | ASTM B241/B241M AMS 4083 ASTM B429/B429M EN 755-2 MIL-T-7081 ISO 6361 |
5 key tips to ensure you choose the top-grade 6061 aluminum round tube
1.Material purity and composition: The alloy composition of the aluminum tube must meet the standards. Material purity directly affects product performance and service life.
| Chalco 6061 Aluminum Round Tube Chemical Composition Table | |
| Element | Percentage |
| Al | 98 |
| Cr | 0.04 - 0.35 |
| Cu | 0.15 - 0.40 |
| Fe | 0.7 max |
| Mg | 0.8 - 1.2 |
| Mn | 0.15 max |
| Si | 0.4 - 0.8 |
| Ti | 0.15 max |
| Zn | 0.25 max |
2.Mechanical properties and strength: can provide tensile, hardness, bending and other test results, and provide mechanical properties test certificates.
| Performance parameters | 6061-T6 | 6061-T4 | 6061-O | 6061-T651 | 6061-T6511 |
| Ultimate tensile strength | 310MPa or 45x103 psi | 230MPa or 33x103 psi | 130MPa or 19x103 psi | 320MPa or 46x103 psi | 290MPa or 42x103 psi |
| Yield strength | 270 MPa or 39x103psi | 30MPa or 19x103 psi | 76MPa or 11x103 psi | 270MPa or 39x103 psi | 270MPa or 40 x 10 3 psi |
| Brinell | 93 | 63 | 33 | 93 | - |
| Elongation | 10% | 18% | 20% | 11% | 9.0% |
3.Dimensional accuracy and tolerance control: Ensure that the key dimensional tolerances of the aluminum tube, such as outer diameter, wall thickness, and cutting, meet the standards.
The outer diameter and wall thickness can be adjusted according to different product production standards, and meet the tolerance requirements of ASTM B210 , ASTM B210, AMS 4080, AMS 4082, AMS 4083, AMS-T-7081, AMS-WWT-700/6 and other standards. The cutting tolerance can be referred to the table below, or according to customer requirements:
| 6061 Aluminum Round Tube Cutting Tolerance | |
| Length | Cutting Tolerance |
| By the lnch | Plus 1/8", Minus 0 |
| 12" | Plus or Minus 1/4" |
| 18" | Plus or Minus 1/4" |
| 24" | Plus or Minus 1/2" |
| 36" | Plus or Minus 1/2" |
| 48" | Plus or Minus 3/4" |
| 60" | Plus or Minus 3/4" |
| 72" | Plus or Minus 1" |
4.Surface finish and defect detection: Check the surface finish of the aluminum tube to avoid defects such as cracks, pores, and dents that affect the appearance and performance of the product.
5.Corrosion resistance and protective treatment: Aluminum tubes have good corrosion resistance, especially when used in harsh environments, and can be provided with surface treatment or special protection.
6061 aluminum tube weight calculator
Use our weight calculator to reliably estimate the weight of aluminum alloy products. From sheets, tubes, bars, to simple profiles, Mastar Metal can provide you with the answers.
First, select an alloy, fill in the other required information, and the system will calculate the weight of the aluminum material for you.
Start by choosing an alloy...
*All weights shown using this metal weight calculator are for guidance only.
Why MASTAR is the preferred supplier of 6061 aluminum round tube
- Fast delivery: we have abundant inventory to ensure fast shipment of any product, saving time for your project.
- Customized service: MASTAR can provide customized service according to customer needs. You only need to inform the length, quantity, surface finish, cutting, bending, color coating, welding, end use and other special requirements.
- Competitive price: our products are priced competitively and we offer reasonable discounts for large quantities, giving you better prices and quality service.
- After-sales support: we provide fast after-sales support to ensure that you get timely help and support when using our products.

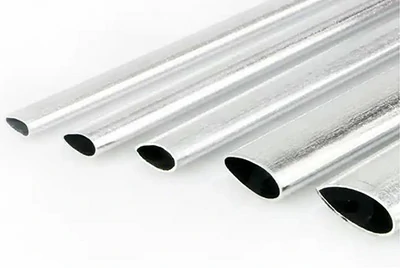

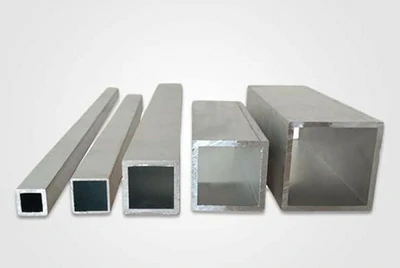

MASTAR other hot selling 6061 aluminum tube products

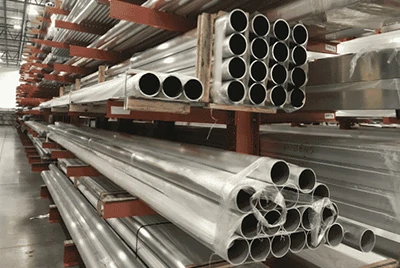

MASTAR 6061 aluminum round tube stock and hot selling sizes
- Stock round tube mm
- Stock Extruded Seamless Pipe mm
- Stock Forged Seamless Pipe mm
- Hot selling round tube size inch
| Material | OD/mm | WT/mm | ID/mm | Length |
| 6061-T6 aluminum tube | 18 | 2.5 | 13 | 4m |
| 6061-T6 aluminum tube | 20 | 5 | 10 | 4m |
| 6061-T6 aluminum tube | 22 | 5 | 12 | 4m |
| 6061-T6 aluminum tube | 24 | 5 | 14 | 4m |
| 6061-T6 aluminum tube | 25 | 5 | 15 | 4m |
| 6061-T6 aluminum tube | 25 | 6 | 13 | 4m |
| 6061-T6 aluminum tube | 25 | 7 | 11 | 4m |
| 6061-T6 aluminum tube | 25 | 8 | 9 | 4m |
| 6061-T6 aluminum tube | 25 | 10 | 5 | 4m |
| 6061-T6 aluminum tube | 26 | 5 | 16 | 4m |
| 6061-T6 aluminum tube | 26 | 7 | 12 | 4m |
| 6061-T6 aluminum tube | 27 | 5 | 17 | 4m |
| 6061-T6 aluminum tube | 28 | 5 | 18 | 4m |
| 6061-T6 aluminum tube | 28 | 7 | 14 | 4m |
| 6061-T6 aluminum tube | 30 | 5 | 20 | 4m |
| 6061-T6 aluminum tube | 30 | 6 | 18 | 4m |
| 6061-T6 aluminum tube | 30 | 7 | 16 | 4m |
| 6061-T6 aluminum tube | 30 | 10 | 10 | 4m |
| 6061-T6 aluminum tube | 32 | 5 | 22 | 4m |
| 6061-T6 aluminum tube | 32 | 6 | 20 | 4m |
| 6061-T6 aluminum tube | 32 | 7 | 18 | 4m |
| 6061-T6 aluminum tube | 34 | 5 | 24 | 4m |
| 6061-T6 aluminum tube | 35 | 5 | 25 | 4m |
| 6061-T6 aluminum tube | 35 | 6 | 23 | 4m |
| 6061-T6 aluminum tube | 35 | 7 | 21 | 4m |
| 6061-T6 aluminum tube | 35 | 8 | 19 | 4m |
| 6061-T6 aluminum tube | 35 | 10 | 15 | 4m |
| 6061-T6 aluminum tube | 35 | 12.5 | 10 | 4m |
| 6061-T6 aluminum tube | 36 | 5 | 26 | 4m |
| 6061-T6 aluminum tube | 38 | 5 | 28 | 4m |
| 6061-T6 aluminum tube | 38 | 6 | 26 | 4m |
| 6061-T6 aluminum tube | 38 | 7 | 24 | 4m |
| 6061-T6 aluminum tube | 38 | 10 | 18 | 4m |
| 6061-T6 aluminum tube | 40 | 5 | 30 | 4m |
| 6061-T6 aluminum tube | 40 | 6 | 28 | 4m |
| 6061-T6 aluminum tube | 40 | 7 | 26 | 4m |
| 6061-T6 aluminum tube | 40 | 8 | 24 | 4m |
| 6061-T6 aluminum tube | 40 | 10 | 20 | 4m |
| 6061-T6 aluminum tube | 41 | 13 | 15 | 4m |
| 6061-T6 aluminum tube | 42 | 5 | 32 | 4m |
| 6061-T6 aluminum tube | 42 | 6 | 30 | 4m |
| 6061-T6 aluminum tube | 42 | 7 | 28 | 4m |
| 6061-T6 aluminum tube | 42 | 8 | 26 | 4m |
| 6061-T6 aluminum tube | 42 | 10 | 22 | 4m |
| 6061-T6 aluminum tube | 45 | 5 | 35 | 4m |
| 6061-T6 aluminum tube | 45 | 6 | 33 | 4m |
| 6061-T6 aluminum tube | 45 | 7 | 31 | 4m |
| 6061-T6 aluminum tube | 45 | 10 | 25 | 4m |
| 6061-T6 aluminum tube | 48 | 5 | 38 | 4m |
| 6061-T6 aluminum tube | 48 | 6 | 36 | 4m |
| 6061-T6 aluminum tube | 48 | 7 | 34 | 4m |
| 6061-T6 aluminum tube | 48 | 10 | 28 | 4m |
| 6061-T6 aluminum tube | 50 | 5 | 40 | 4m |
| 6061-T6 aluminum tube | 50 | 6 | 38 | 4m |
| 6061-T6 aluminum tube | 50 | 7 | 36 | 4m |
| 6061-T6 aluminum tube | 50 | 10 | 30 | 4m |
| 6061-T6 aluminum tube | 50 | 12.5 | 25 | 4m |
| 6061-T6 aluminum tube | 50 | 15 | 20 | 6m |
| 6061-T6 aluminum tube | 52 | 5 | 42 | 4m |
| 6061-T6 aluminum tube | 52 | 11 | 30 | 3m |
| 6061-T6 aluminum tube | 54 | 6 | 42 | 4m |
| 6061-T6 aluminum tube | 55 | 5 | 45 | 4m |
| 6061-T6 aluminum tube | 55 | 7 | 41 | 4m |
| 6061-T6 aluminum tube | 55 | 8.5 | 38 | 4m |
| 6061-T6 aluminum tube | 55 | 10 | 35 | 6m |
| 6061-T6 aluminum tube | 55 | 12.5 | 30 | 4m |
| 6061-T6 aluminum tube | 55 | 15 | 25 | 4m |
| 6061-T6 aluminum tube | 57 | 5 | 47 | 4m |
| 6061-T6 aluminum tube | 57 | 6 | 45 | 4m |
| 6061-T6 aluminum tube | 60 | 5 | 50 | 4m |
| 6061-T6 aluminum tube | 60 | 6 | 48 | 4m |
| 6061-T6 aluminum tube | 60 | 7 | 46 | 4m |
| 6061-T6 aluminum tube | 60 | 8 | 44 | 4m |
| 6061-T6 aluminum tube | 60 | 10 | 40 | 6m |
| 6061-T6 aluminum tube | 60 | 15 | 30 | 4m |
| 6061-T6 aluminum tube | 60 | 20 | 20 | 6m |
| 6061-T6 aluminum tube | 62 | 10 | 42 | 4m |
| 6061-T6 aluminum tube | 65 | 5 | 55 | 4m |
| 6061-T6 aluminum tube | 65 | 10 | 45 | 6m |
| 6061-T6 aluminum tube | 65 | 12.5 | 40 | 4m |
| 6061-T6 aluminum tube | 65 | 15 | 35 | 4m |
| 6061-T6 aluminum tube | 65 | 20 | 25 | 6m |
| 6061-T6 aluminum tube | 70 | 5 | 60 | 4m |
| 6061-T6 aluminum tube | 70 | 7.5 | 55 | 4m |
| 6061-T6 aluminum tube | 70 | 8 | 54 | 4m |
| 6061-T6 aluminum tube | 70 | 10 | 50 | 4m |
| 6061-T6 aluminum tube | 70 | 15 | 40 | 3m/3.5m/4m. |
| 6061-T6 aluminum tube | 70 | 20 | 30 | 4m |
| 6061-T6 aluminum tube | 72 | 6 | 60 | 4m |
| 6061-T6 aluminum tube | 75 | 5 | 65 | 4m |
| 6061-T6 aluminum tube | 75 | 10 | 55 | 4m |
| 6061-T6 aluminum tube | 75 | 15 | 45 | 3m |
| 6061-T6 aluminum tube | 76 | 5 | 66 | 4m |
| 6061-T6 aluminum tube | 76 | 6 | 64 | 4m |
| 6061-T6 aluminum tube | 80 | 5 | 70 | 4m |
| 6061-T6 aluminum tube | 80 | 6 | 68 | 6m |
| 6061-T6 aluminum tube | 80 | 8 | 64 | 4m |
| 6061-T6 aluminum tube | 80 | 10 | 60 | 4m |
| 6061-T6 aluminum tube | 80 | 15 | 50 | 4m |
| 6061-T6 aluminum tube | 80 | 20 | 40 | 4m |
| 6061-T6 aluminum tube | 80 | 25 | 30 | 3m |
| 6061-T6 aluminum tube | 85 | 6.5 | 72 | 4m |
| 6061-T6 aluminum tube | 85 | 10 | 65 | 4m |
| 6061-T6 aluminum tube | 85 | 12.5 | 60 | 3m |
| 6061-T6 aluminum tube | 85 | 15 | 55 | 4m |
| 6061-T6 aluminum tube | 85 | 20 | 45 | 4m |
| 6061-T6 aluminum tube | 85 | 25 | 35 | 3m |
| 6061-T6 aluminum tube | 90 | 6 | 78 | 6m |
| 6061-T6 aluminum tube | 90 | 10 | 70 | 4m |
| 6061-T6 aluminum tube | 90 | 15 | 60 | 4m |
| 6061-T6 aluminum tube | 90 | 20 | 50 | 3m/4m |
| 6061-T6 aluminum tube | 90 | 25 | 40 | 3m |
| 6061-T6 aluminum tube | 90 | 30 | 30 | 2.5m |
| 6061-T6 aluminum tube | 92 | 31 | 30 | 6m |
| 6061-T6 aluminum tube | 95 | 10 | 75 | 6m |
| 6061-T6 aluminum tube | 95 | 15 | 65 | 4m |
| 6061-T6 aluminum tube | 95 | 17.5 | 60 | 3m |
| 6061-T6 aluminum tube | 95 | 20 | 55 | 3m |
| 6061-T6 aluminum tube | 100 | 10 | 80 | 6m |
| 6061-T6 aluminum tube | 100 | 15 | 70 | 4m |
| 6061-T6 aluminum tube | 100 | 20 | 60 | 6m/3m |
| 6061-T6 aluminum tube | 100 | 25 | 50 | 6m |
| 6061-T6 aluminum tube | 100 | 30 | 40 | 6m |
| 6061-T6 aluminum tube | 105 | 10 | 85 | 6m |
| 6061-T6 aluminum tube | 105 | 12.5 | 80 | 4m |
| 6061-T6 aluminum tube | 105 | 15 | 75 | 4m |
| 6061-T6 aluminum tube | 110 | 10 | 90 | 4m |
| 6061-T6 aluminum tube | 110 | 15 | 80 | 6m/4m |
| 6061-T6 aluminum tube | 110 | 20 | 70 | 6m/2.5m |
| 6061-T6 aluminum tube | 110 | 25 | 60 | 6m |
| 6061-T6 aluminum tube | 110 | 30 | 50 | 6m |
| 6061-T6 aluminum tube | 115 | 10 | 95 | 4m |
| 6061-T6 aluminum tube | 115 | 12.5 | 90 | 4m |
| 6061-T6 aluminum tube | 115 | 15 | 85 | 3m |
| 6061-T6 aluminum tube | 120 | 10 | 100 | 6m |
| 6061-T6 aluminum tube | 120 | 15 | 90 | 6m |
| 6061-T6 aluminum tube | 120 | 20 | 80 | 6m |
| 6061-T6 aluminum tube | 120 | 25 | 70 | 6m |
| 6061-T6 aluminum tube | 120 | 30 | 60 | 6m |
| 6061-T6 aluminum tube | 120 | 40 | 40 | 6m |
| 6061-T6 aluminum tube | 122 | 27 | 68 | 6m |
| 6061-T6 aluminum tube | 125 | 10 | 105 | 4m |
| 6061-T6 aluminum tube | 125 | 15 | 95 | 3m |
| 6061-T6 aluminum tube | 125 | 20 | 85 | 6m |
| 6061-T6 aluminum tube | 125 | 25 | 75 | 6m |
| 6061-T6 aluminum tube | 130 | 10 | 110 | 4m/6m |
| 6061-T6 aluminum tube | 130 | 15 | 100 | 6m/3m |
| 6061-T6 aluminum tube | 130 | 20 | 90 | 6m |
| 6061-T6 aluminum tube | 130 | 25 | 80 | 6m |
| 6061-T6 aluminum tube | 130 | 30 | 70 | 6m |
| 6061-T6 aluminum tube | 130 | 40 | 50 | 6m |
| 6061-T6 aluminum tube | 133 | 10 | 113 | 6.02m |
| 6061-T6 aluminum tube | 135 | 10 | 115 | 4m |
| 6061-T6 aluminum tube | 135 | 17.5 | 100 | 6m |
| 6061-T6 aluminum tube | 140 | 10 | 120 | 6m/4m |
| 6061-T6 aluminum tube | 140 | 15 | 110 | 6m |
| 6061-T6 aluminum tube | 140 | 20 | 100 | 6m |
| 6061-T6 aluminum tube | 140 | 30 | 80 | 6m |
| 6061-T6 aluminum tube | 140 | 32.5 | 75 | 1.5m |
| 6061-T6 aluminum tube | 140 | 40 | 60 | 6m |
| 6061-T6 aluminum tube | 142 | 34 | 74 | 6m |
| 6061-T6 aluminum tube | 145 | 10 | 125 | 6m |
| 6061-T6 aluminum tube | 145 | 15 | 115 | 5.9m/6m |
| 6061-T6 aluminum tube | 145 | 20 | 105 | 6m |
| 6061-T6 aluminum tube | 145 | 22.5 | 100 | 6m |
| 6061-T6 aluminum tube | 150 | 10 | 130 | 6m |
| 6061-T6 aluminum tube | 150 | 12.5 | 125 | 3m |
| 6061-T6 aluminum tube | 150 | 15 | 120 | 6m |
| 6061-T6 aluminum tube | 150 | 20 | 110 | 6m |
| 6061-T6 aluminum tube | 150 | 25 | 100 | 6m |
| 6061-T6 aluminum tube | 150 | 30 | 90 | 6m |
| 6061-T6 aluminum tube | 150 | 40 | 70 | 6m |
| 6061-T6 aluminum tube | 155 | 12.5 | 130 | 6m |
| 6061-T6 aluminum tube | 155 | 17.5 | 120 | 6m |
| 6061-T6 aluminum tube | 160 | 10 | 140 | 6m |
| 6061-T6 aluminum tube | 160 | 15 | 130 | 6m |
| 6061-T6 aluminum tube | 160 | 20 | 120 | 6m |
| 6061-T6 aluminum tube | 160 | 25 | 110 | 6m |
| 6061-T6 aluminum tube | 160 | 30 | 100 | 6m |
| 6061-T6 aluminum tube | 160 | 40 | 80 | 6m |
| 6061-T6 aluminum tube | 165 | 10 | 145 | 6m |
| 6061-T6 aluminum tube | 165 | 15 | 135 | 6m |
| 6061-T6 aluminum tube | 165 | 20 | 125 | 6m |
| 6061-T6 aluminum tube | 168 | 22 | 124 | 6m |
| 6061-T6 aluminum tube | 170 | 10 | 150 | 6m |
| 6061-T6 aluminum tube | 170 | 15 | 140 | 6m |
| 6061-T6 aluminum tube | 170 | 20 | 130 | 6m |
| 6061-T6 aluminum tube | 170 | 30 | 110 | 6m |
| 6061-T6 aluminum tube | 170 | 40 | 90 | 6m/3m |
| 6061-T6 aluminum tube | 175 | 10 | 155 | 6m |
| 6061-T6 aluminum tube | 175 | 15 | 145 | 6m |
| 6061-T6 aluminum tube | 175 | 20 | 135 | 6m |
| 6061-T6 aluminum tube | 180 | 8 | 164 | 6m |
| 6061-T6 aluminum tube | 180 | 10 | 160 | 6m |
| 6061-T6 aluminum tube | 180 | 15 | 150 | 6m |
| 6061-T6 aluminum tube | 180 | 20 | 140 | 6m |
| 6061-T6 aluminum tube | 180 | 25 | 130 | 6m/3m |
| 6061-T6 aluminum tube | 180 | 30 | 120 | 6m |
| 6061-T6 aluminum tube | 180 | 40 | 100 | 4m |
| 6061-T6 aluminum tube | 180 | 50 | 80 | 4m |
| 6061-T6 aluminum tube | 184 | 8 | 168 | 6m |
| 6061-T6 aluminum tube | 185 | 10 | 165 | 6m |
| 6061-T6 aluminum tube | 185 | 15 | 155 | 6m |
| 6061-T6 aluminum tube | 185 | 20 | 145 | 6m |
| 6061-T6 aluminum tube | 190 | 10 | 170 | 6m |
| 6061-T6 aluminum tube | 190 | 15 | 160 | 6m |
| 6061-T6 aluminum tube | 190 | 20 | 150 | 6m |
| 6061-T6 aluminum tube | 190 | 25 | 140 | 6m |
| 6061-T6 aluminum tube | 190 | 30 | 130 | 4m |
| 6061-T6 aluminum tube | 192 | 12 | 168 | 6m |
| 6061-T6 aluminum tube | 195 | 10 | 175 | 6m |
| 6061-T6 aluminum tube | 195 | 15 | 165 | 6m |
| 6061-T6 aluminum tube | 195 | 20 | 155 | 6m |
| 6061-T6 aluminum tube | 200 | 10 | 180 | 6m |
| 6061-T6 aluminum tube | 200 | 15 | 170 | 6m |
| 6061-T6 aluminum tube | 200 | 20 | 160 | 6m |
| 6061-T6 aluminum tube | 200 | 25 | 150 | 6m |
| 6061-T6 aluminum tube | 200 | 30 | 140 | 4m |
| 6061-T6 aluminum tube | 200 | 40 | 120 | 6m |
| 6061-T6 aluminum tube | 203.2 | 25.4 | 152.4 | 6m |
| 6061-T6 aluminum tube | 210 | 10 | 190 | 6m/3.9m |
| 6061-T6 aluminum tube | 210 | 20 | 170 | 6m |
| 6061-T6 aluminum tube | 210 | 25 | 160 | 6m |
| 6061-T6 aluminum tube | 210 | 50 | 110 | 6m |
| 6061-T6 aluminum tube | 218 | 12 | 194 | 6m/4m |
| 6061-T6 aluminum tube | 219 | 12.7 | 193.6 | 6m |
| 6061-T6 aluminum tube | 219.8 | 8.18 | 203.44 | 6m |
| 6061-T6 aluminum tube | 220 | 10 | 200 | 6m |
| 6061-T6 aluminum tube | 220 | 15 | 190 | 6m |
| 6061-T6 aluminum tube | 220 | 20 | 180 | 6m |
| 6061-T6 aluminum tube | 220 | 30 | 160 | 4m/6m |
| 6061-T6 aluminum tube | 220 | 50 | 120 | 6m |
| 6061-T6 aluminum tube | 230 | 10 | 210 | 6m |
| 6061-T6 aluminum tube | 230 | 15 | 200 | 6m/3.9m |
| 6061-T6 aluminum tube | 230 | 20 | 190 | 6m |
| 6061-T6 aluminum tube | 230 | 30 | 170 | 6m |
| 6061-T6 aluminum tube | 230 | 36.5 | 157 | 6m |
| 6061-T6 aluminum tube | 230 | 50 | 130 | 6m |
| 6061-T6 aluminum tube | 240 | 10 | 220 | 6m |
| 6061-T6 aluminum tube | 240 | 16 | 208 | 6m |
| 6061-T6 aluminum tube | 240 | 20 | 200 | 6m |
| 6061-T6 aluminum tube | 240 | 30 | 180 | 4m |
| 6061-T6 aluminum tube | 240 | 50 | 140 | 6m |
| 6061-T6 aluminum tube | 250 | 10 | 230 | 6m |
| 6061-T6 aluminum tube | 250 | 20 | 210 | 6m |
| 6061-T6 aluminum tube | 250 | 30 | 190 | 6m |
| 6061-T6 aluminum tube | 250 | 50 | 150 | 6m |
| 6061-T6 aluminum tube | 254 | 15.8 | 222.4 | 6m |
| 6061-T6 aluminum tube | 254 | 25.5 | 203 | 6m |
| 6061-T6 aluminum tube | 260 | 8 | 244 | 6m |
| 6061-T6 aluminum tube | 260 | 14 | 232 | 6m |
| 6061-T6 aluminum tube | 260 | 20 | 220 | 6m |
| 6061-T6 aluminum tube | 260 | 30 | 200 | 4m/6m |
| 6061-T6 aluminum tube | 261 | 51 | 159 | 6m |
| 6061-T6 aluminum tube | 263 | 6 | 251 | 6m |
| 6061-T6 aluminum tube | 268 | 8 | 252 | 6m |
| 6061-T6 aluminum tube | 270 | 10 | 250 | 6m |
| 6061-T6 aluminum tube | 270 | 15 | 240 | 6m |
| 6061-T6 aluminum tube | 270 | 20 | 230 | 4m |
| 6061-T6 aluminum tube | 270 | 30 | 210 | 4m |
| 6061-T6 aluminum tube | 270 | 50 | 170 | 6m |
| 6061-T6 aluminum tube | 280 | 10 | 260 | 6m |
| 6061-T6 aluminum tube | 280 | 20 | 240 | 4m |
| 6061-T6 aluminum tube | 280 | 30 | 220 | 4m/6m |
| 6061-T6 aluminum tube | 280 | 40 | 200 | 3m |
| 6061-T6 aluminum tube | 280 | 50 | 180 | 6m |
| 6061-T6 aluminum tube | 286 | 8 | 270 | 6m |
| 6061-T6 aluminum tube | 290 | 40 | 210 | 6m |
| 6061-T6 aluminum tube | 298 | 21.5 | 255 | 6m |
| 6061-T6 aluminum tube | 300 | 10 | 280 | 6m |
| 6061-T6 aluminum tube | 300 | 15 | 270 | 6m |
| 6061-T6 aluminum tube | 300 | 30 | 240 | 3m/6m |
| 6061-T6 aluminum tube | 300 | 40 | 220 | 6m |
| 6061-T6 aluminum tube | 305 | 14.5 | 276 | 6m |
| 6061-T6 aluminum tube | 310 | 40 | 230 | 6m |
| 6061-T6 aluminum tube | 320 | 10 | 300 | 6m |
| 6061-T6 aluminum tube | 320 | 25 | 270 | 6m |
| 6061-T6 aluminum tube | 320 | 40 | 240 | 6m |
| 6061-T6 aluminum tube | 320 | 50 | 220 | 6m |
| 6061-T6 aluminum tube | 325 | 11.5 | 302 | 6m |
| 6061-T6 aluminum tube | 340 | 10 | 320 | 6m |
| 6061-T6 aluminum tube | 347 | 15 | 317 | 6m |
| 6061-T6 aluminum tube | 350 | 12 | 326 | 6m |
| 6061-T6 aluminum tube | 350 | 25 | 300 | 6m |
| 6061-T6 aluminum tube | 350 | 50 | 250 | 3m |
| 6061-T6 aluminum tube | 356 | 10.5 | 335 | 6m |
| 6061-T6 aluminum tube | 370 | 15 | 340 | 6m |
| 6061-T6 aluminum tube | 400 | 10 | 380 | 6m |
| 6061-T6 aluminum tube | 402 | 11 | 380 | 6m |
| 6061-T6 aluminum tube | 435 | 37.5 | 360 | 6m |
| 6061-T6 aluminum tube | 452 | 9 | 434 | 6m |
Click to see all
Click to collapse| Material | OD/mm | WT/mm | ID/mm | Length |
| 6061-T6 seamless tube(extruded) | 120 | 40 | 40 | 3m |
| 6061-T6 seamless tube(extruded) | 130 | 40 | 50 | 6m |
| 6061-T6 seamless tube(extruded) | 140 | 40 | 60 | 3m |
| 6061-T6 seamless tube(extruded) | 150 | 40 | 70 | 6m |
| 6061-T6 seamless tube(extruded) | 150 | 50 | 50 | 6m |
| 6061-T6 seamless tube(extruded) | 160 | 40 | 80 | 6m |
| 6061-T6 seamless tube(extruded) | 160 | 50 | 60 | 4m |
| 6061-T6 seamless tube(extruded) | 160 | 60 | 40 | 4m |
| 6061-T6 seamless tube(extruded) | 170 | 40 | 90 | 6m |
| 6061-T6 seamless tube(extruded) | 170 | 50 | 70 | 4m |
| 6061-T6 seamless tube(extruded) | 170 | 60 | 50 | 4m |
| 6061-T6 seamless tube(extruded) | 180 | 40 | 100 | 4m |
| 6061-T6 seamless tube(extruded) | 180 | 50 | 80 | 4m |
| 6061-T6 seamless tube(extruded) | 180 | 60 | 60 | 4m |
| 6061-T6 seamless tube(extruded) | 190 | 30 | 130 | 6m |
| 6061-T6 seamless tube(extruded) | 190 | 40 | 110 | 6m |
| 6061-T6 seamless tube(extruded) | 190 | 50 | 90 | 4m |
| 6061-T6 seamless tube(extruded) | 190 | 60 | 70 | 4m |
| 6061-T6 seamless tube(extruded) | 200 | 32.5 | 135 | 4m/2.1m |
| 6061-T6 seamless tube(extruded) | 200 | 40 | 120 | 4m |
| 6061-T6 seamless tube(extruded) | 200 | 50 | 100 | 4m |
| 6061-T6 seamless tube(extruded) | 200 | 60 | 80 | 3m |
| 6061-T6 seamless tube(extruded) | 210 | 30 | 150 | 3.6m |
| 6061-T6 seamless tube(extruded) | 210 | 40 | 130 | 4m |
| 6061-T6 seamless tube(extruded) | 210 | 50 | 110 | 4m |
| 6061-T6 seamless tube(extruded) | 210 | 60 | 90 | 4m |
| 6061-T6 seamless tube(extruded) | 220 | 40 | 140 | 4m |
| 6061-T6 seamless tube(extruded) | 220 | 50 | 120 | 4m |
| 6061-T6 seamless tube(extruded) | 220 | 60 | 100 | 4m |
| 6061-T6 seamless tube(extruded) | 230 | 30 | 170 | 4m |
| 6061-T6 seamless tube(extruded) | 230 | 40 | 150 | 3.5m |
| 6061-T6 seamless tube(extruded) | 230 | 50 | 130 | 4m |
| 6061-T6 seamless tube(extruded) | 230 | 60 | 110 | 3m |
| 6061-T6 seamless tube(extruded) | 240 | 20 | 200 | 4m |
| 6061-T6 seamless tube(extruded) | 240 | 30 | 180 | 4m |
| 6061-T6 seamless tube(extruded) | 240 | 40 | 160 | 3m |
| 6061-T6 seamless tube(extruded) | 240 | 50 | 140 | 3.5m |
| 6061-T6 seamless tube(extruded) | 240 | 50 | 140 | 1.5m |
| 6061-T6 seamless tube(extruded) | 240 | 60 | 120 | 3m |
| 6061-T6 seamless tube(extruded) | 250 | 25 | 200 | 3m |
| 6061-T6 seamless tube(extruded) | 250 | 40 | 170 | 2.5m |
| 6061-T6 seamless tube(extruded) | 250 | 50 | 150 | 3.5m |
| 6061-T6 seamless tube(extruded) | 250 | 60 | 130 | 3m |
| 6061-T6 seamless tube(extruded) | 260 | 20 | 220 | 4m |
| 6061-T6 seamless tube(extruded) | 260 | 40 | 180 | 2.5m |
| 6061-T6 seamless tube(extruded) | 260 | 50 | 160 | 2m |
| 6061-T6 seamless tube(extruded) | 260 | 60 | 140 | 2.5m |
| 6061-T6 seamless tube(extruded) | 270 | 20 | 230 | 3.5m |
| 6061-T6 seamless tube(extruded) | 270 | 30 | 210 | 2m |
| 6061-T6 seamless tube(extruded) | 270 | 40 | 190 | 2.5m |
| 6061-T6 seamless tube(extruded) | 270 | 50 | 170 | 2m |
| 6061-T6 seamless tube(extruded) | 280 | 20 | 240 | 3m |
Click to see all | Material | OD/mm | WT/mm | ID/mm | Length |
| 6061-T6 seamless tube (forged) | 280 | 40 | 200 | 0.51m |
| 6061-T6 seamless tube (forged) | 280 | 50 | 180 | 0.51m |
| 6061-T6 seamless tube (forged) | 280 | 60 | 160 | 0.51m |
| 6061-T6 seamless tube (forged) | 290 | 30 | 230 | 0.51m |
| 6061-T6 seamless tube (forged) | 290 | 40 | 210 | 0.51m |
| 6061-T6 seamless tube (forged) | 290 | 50 | 190 | 0.51m |
| 6061-T6 seamless tube (forged) | 290 | 60 | 170 | 1.01m |
| 6061-T6 seamless tube (forged) | 300 | 30 | 240 | 0.51m |
| 6061-T6 seamless tube (forged) | 300 | 40 | 220 | 0.51m |
| 6061-T6 seamless tube (forged) | 300 | 50 | 200 | 0.51m |
| 6061-T6 seamless tube (forged) | 300 | 60 | 180 | 0.51m |
| 6061-T6 seamless tube (forged) | 300 | 100 | 100 | 0.51m |
| 6061-T6 seamless tube (forged) | 310 | 30 | 250 | 0.51m |
| 6061-T6 seamless tube (forged) | 310 | 40 | 230 | 0.51m |
| 6061-T6 seamless tube (forged) | 310 | 50 | 210 | 0.51m |
| 6061-T6 seamless tube (forged) | 320 | 30 | 260 | 0.51m |
| 6061-T6 seamless tube (forged) | 320 | 40 | 240 | 0.51m |
| 6061-T6 seamless tube (forged) | 320 | 50 | 220 | 0.51m |
| 6061-T6 seamless tube (forged) | 320 | 60 | 200 | 0.51m |
| 6061-T6 seamless tube (forged) | 330 | 30 | 270 | 0.51m |
| 6061-T6 seamless tube (forged) | 330 | 40 | 250 | 0.51m |
| 6061-T6 seamless tube (forged) | 330 | 50 | 230 | 0.51m |
| 6061-T6 seamless tube (forged) | 330 | 60 | 210 | 0.51m |
| 6061-T6 seamless tube (forged) | 336 | 45 | 246 | 0.51m |
| 6061-T6 seamless tube (forged) | 340 | 30 | 280 | 0.51m |
| 6061-T6 seamless tube (forged) | 340 | 40 | 260 | 0.51m |
| 6061-T6 seamless tube (forged) | 340 | 50 | 240 | 0.51m |
| 6061-T6 seamless tube (forged) | 340 | 60 | 220 | 0.51m |
| 6061-T6 seamless tube (forged) | 350 | 30 | 290 | 0.51m |
| 6061-T6 seamless tube (forged) | 350 | 37.5 | 275 | 0.355m |
| 6061-T6 seamless tube (forged) | 350 | 40 | 270 | 0.51m |
| 6061-T6 seamless tube (forged) | 350 | 50 | 250 | 0.51m |
| 6061-T6 seamless tube (forged) | 350 | 60 | 230 | 1.01m |
| 6061-T6 seamless tube (forged) | 351 | 38 | 275 | 0.357m |
| 6061-T6 seamless tube (forged) | 360 | 30 | 300 | 0.51m |
| 6061-T6 seamless tube (forged) | 360 | 40 | 280 | 1.01m |
| 6061-T6 seamless tube (forged) | 360 | 50 | 260 | 0.51m |
| 6061-T6 seamless tube (forged) | 360 | 60 | 240 | 0.51m |
| 6061-T6 seamless tube (forged) | 370 | 30 | 310 | 0.51m |
| 6061-T6 seamless tube (forged) | 370 | 40 | 290 | 0.51m |
| 6061-T6 seamless tube (forged) | 370 | 50 | 270 | 1.01m |
| 6061-T6 seamless tube (forged) | 370 | 60 | 250 | 1.01m |
| 6061-T6 seamless tube (forged) | 380 | 30 | 320 | 0.51m |
| 6061-T6 seamless tube (forged) | 380 | 40 | 300 | 0.51m |
| 6061-T6 seamless tube (forged) | 380 | 50 | 280 | 0.51m |
| 6061-T6 seamless tube (forged) | 380 | 60 | 260 | 1.01m |
| 6061-T6 seamless tube (forged) | 390 | 30 | 330 | 0.51m |
| 6061-T6 seamless tube (forged) | 390 | 40 | 310 | 0.51m |
| 6061-T6 seamless tube (forged) | 390 | 50 | 290 | 0.51m |
| 6061-T6 seamless tube (forged) | 390 | 60 | 270 | 0.51m |
| 6061-T6 seamless tube (forged) | 400 | 30 | 340 | 0.51m |
| 6061-T6 seamless tube (forged) | 400 | 38 | 324 | 0.285m |
| 6061-T6 seamless tube (forged) | 400 | 40 | 320 | 1.01m |
| 6061-T6 seamless tube (forged) | 400 | 50 | 300 | 1.2m |
| 6061-T6 seamless tube (forged) | 400 | 60 | 280 | 1.2m |
| 6061-T6 seamless tube (forged) | 400 | 100 | 200 | 1.2m |
| 6061-T6 seamless tube (forged) | 410 | 30 | 350 | 0.51m |
| 6061-T6 seamless tube (forged) | 410 | 40 | 330 | 0.51m |
| 6061-T6 seamless tube (forged) | 410 | 50 | 310 | 1.2m |
| 6061-T6 seamless tube (forged) | 410 | 60 | 290 | 1.2m |
| 6061-T6 seamless tube (forged) | 420 | 30 | 360 | 0.51m |
| 6061-T6 seamless tube (forged) | 420 | 40 | 340 | 0.51m |
| 6061-T6 seamless tube (forged) | 420 | 50 | 320 | 1.2m |
| 6061-T6 seamless tube (forged) | 420 | 60 | 300 | 1.2m |
| 6061-T6 seamless tube (forged) | 420 | 100 | 220 | 1m |
| 6061-T6 seamless tube (forged) | 430 | 30 | 370 | 0.51m |
| 6061-T6 seamless tube (forged) | 430 | 40 | 350 | 1.2m |
| 6061-T6 seamless tube (forged) | 430 | 50 | 330 | 1.01m |
| 6061-T6 seamless tube (forged) | 430 | 60 | 310 | 1.2m |
| 6061-T6 seamless tube (forged) | 440 | 30 | 380 | 1.2m |
| 6061-T6 seamless tube (forged) | 440 | 40 | 360 | 1.2m |
| 6061-T6 seamless tube (forged) | 440 | 50 | 340 | 1.2m |
| 6061-T6 seamless tube (forged) | 440 | 60 | 320 | 1.2m |
| 6061-T6 seamless tube (forged) | 440 | 110 | 220 | 1.05m |
| 6061-T6 seamless tube (forged) | 450 | 30 | 390 | 1m |
| 6061-T6 seamless tube (forged) | 450 | 40 | 370 | 1.2m |
| 6061-T6 seamless tube (forged) | 450 | 50 | 350 | 1.2m |
| 6061-T6 seamless tube (forged) | 450 | 60 | 330 | 1.01m |
| 6061-T6 seamless tube (forged) | 450 | 100 | 250 | 1.2m |
| 6061-T6 seamless tube (forged) | 460 | 30 | 400 | 1.2m |
| 6061-T6 seamless tube (forged) | 460 | 40 | 380 | 1m |
| 6061-T6 seamless tube (forged) | 460 | 50 | 360 | 1.2m |
| 6061-T6 seamless tube (forged) | 460 | 60 | 340 | 1.2m |
| 6061-T6 seamless tube (forged) | 470 | 30 | 410 | 1m |
| 6061-T6 seamless tube (forged) | 470 | 40 | 390 | 1.2m |
| 6061-T6 seamless tube (forged) | 470 | 50 | 370 | 0.51m |
| 6061-T6 seamless tube (forged) | 470 | 60 | 350 | 1.2m |
| 6061-T6 seamless tube (forged) | 480 | 30 | 420 | 0.51m |
| 6061-T6 seamless tube (forged) | 480 | 40 | 400 | 1.01m |
| 6061-T6 seamless tube (forged) | 480 | 50 | 380 | 0.51m |
| 6061-T6 seamless tube (forged) | 480 | 60 | 360 | 1.2m |
| 6061-T6 seamless tube (forged) | 490 | 30 | 430 | 1.01m |
| 6061-T6 seamless tube (forged) | 490 | 40 | 410 | 0.51m |
| 6061-T6 seamless tube (forged) | 490 | 50 | 390 | 1m |
| 6061-T6 seamless tube (forged) | 490 | 60 | 370 | 1.2m |
| 6061-T6 seamless tube (forged) | 500 | 30 | 440 | 0.51m |
| 6061-T6 seamless tube (forged) | 500 | 40 | 420 | 1.01m |
| 6061-T6 seamless tube (forged) | 500 | 50 | 400 | 1.2m |
| 6061-T6 seamless tube (forged) | 500 | 60 | 380 | 1.2m |
| 6061-T6 seamless tube (forged) | 500 | 100 | 300 | 0.51m |
| 6061-T6 seamless tube (forged) | 510 | 30 | 450 | 0.51m |
| 6061-T6 seamless tube (forged) | 510 | 40 | 430 | 1.2m |
| 6061-T6 seamless tube (forged) | 510 | 50 | 410 | 1.01m |
| 6061-T6 seamless tube (forged) | 510 | 60 | 390 | 1.2m |
| 6061-T6 seamless tube (forged) | 520 | 30 | 460 | 1.2m |
| 6061-T6 seamless tube (forged) | 520 | 40 | 440 | 0.51m |
| 6061-T6 seamless tube (forged) | 520 | 50 | 420 | 1.2m |
| 6061-T6 seamless tube (forged) | 520 | 60 | 400 | 1.2m |
| 6061-T6 seamless tube (forged) | 530 | 30 | 470 | 1.2m |
| 6061-T6 seamless tube (forged) | 530 | 40 | 450 | 1.2m |
| 6061-T6 seamless tube (forged) | 530 | 50 | 430 | 1.2m |
| 6061-T6 seamless tube (forged) | 530 | 60 | 410 | 1.2m |
| 6061-T6 seamless tube (forged) | 540 | 30 | 480 | 0.51m |
| 6061-T6 seamless tube (forged) | 540 | 40 | 460 | 0.51m |
| 6061-T6 seamless tube (forged) | 540 | 50 | 440 | 1.2m |
| 6061-T6 seamless tube (forged) | 540 | 60 | 420 | 1.2m |
| 6061-T6 seamless tube (forged) | 550 | 30 | 490 | 0.51m |
| 6061-T6 seamless tube (forged) | 550 | 40 | 470 | 0.51m |
| 6061-T6 seamless tube (forged) | 550 | 50 | 450 | 0.51m |
| 6061-T6 seamless tube (forged) | 560 | 30 | 500 | 0.51m |
| 6061-T6 seamless tube (forged) | 560 | 40 | 480 | 0.51m |
| 6061-T6 seamless tube (forged) | 560 | 50 | 460 | 0.51m |
| 6061-T6 seamless tube (forged) | 570 | 30 | 510 | 0.51m |
| 6061-T6 seamless tube (forged) | 570 | 40 | 490 | 0.51m |
| 6061-T6 seamless tube (forged) | 570 | 50 | 470 | 0.51m |
| 6061-T6 seamless tube (forged) | 580 | 30 | 520 | 0.51m |
| 6061-T6 seamless tube (forged) | 580 | 40 | 500 | 0.51m |
| 6061-T6 seamless tube (forged) | 580 | 50 | 480 | 0.51m |
| 6061-T6 seamless tube (forged) | 590 | 30 | 530 | 0.51m |
| 6061-T6 seamless tube (forged) | 590 | 40 | 510 | 0.51m |
| 6061-T6 seamless tube (forged) | 590 | 50 | 490 | 0.51m |
| 6061-T6 seamless tube (forged) | 600 | 30 | 540 | 0.51m |
| 6061-T6 seamless tube (forged) | 600 | 40 | 520 | 0.51m |
Click to see all | OD | ID | WT |
| 3/16 | 0.118 | 0.035 |
| 1/4 | 0.18 | 0.035 |
| 1/4 | 0.152 | 0.049 |
| 5/16 | 0.215 | 0.049 |
| 5/16 | 0.197 | 0.058 |
| 5/16 | 0.187 | 0.065 |
| 3/8 | 0.305 | 0.035 |
| 3/8 | 0.259 | 0.058 |
| 3/8 | 0.245 | 0.065 |
| 7/16 | 0.209 | 0.083 |
| 1/2 | 0.307 | 0.065 |
| 1/2 | 0.444 | 0.028 |
| 1/2 | 0.430 | 0.035 |
| 1/2 | 0.402 | 0.049 |
| 1/2 | 0.384 | 0.058 |
| 1/2 | 0.370 | 0.065 |
| 1/2 | 0.260 | 0.12 |
| 5/8 | 0.555 | 0.035 |
| 5/8 | 0.527 | 0.049 |
| 5/8 | 0.509 | 0.058 |
| 5/8 | 0.495 | 0.065 |
| 3/4 | 0.680 | 0.035 |
| 3/4 | 0.652 | 0.049 |
| 3/4 | 0.634 | 0.058 |
| 3/4 | 0.620 | 0.065 |
| 7/8 | 0.805 | 0.035 |
| 7/8 | 0.777 | 0.049 |
| 7/8 | 0.759 | 0.058 |
| 7/8 | 0.745 | 0.065 |
| 7/8 | 0.635 | 0.12 |
| 1 | 0.93 | 0.035 |
| 1 | 0.902 | 0.049 |
| 1 | 0.884 | 0.058 |
| 1 | 0.870 | 0.065 |
| 1 | 0.830 | 0.083 |
| 1 | 0.810 | 0.095 |
| 1 | 0.750 | 0.125 |
| 1 | 0.500 | 0.25 |
| 1-1/8 | 1.027 | 0.049 |
| 1-1/8 | 1.009 | 0.058 |
| 1-1/8 | 0.875 | 0.128 |
| 1-1/4 | 1.180 | 0.035 |
| 1-1/4 | 1.152 | 0.049 |
| 1-1/4 | 1.134 | 0.058 |
| 1-1/4 | 1.120 | 0.065 |
| 1-1/4 | 1.010 | 0.12 |
| 1-3/8 | 1.259 | 0.058 |
| 1-1/2 | 1.430 | 0.035 |
| 1-1/2 | 1.402 | 0.049 |
| 1-1/2 | 1.384 | 0.058 |
| 1-1/2 | 1.370 | 0.065 |
| 1-1/2 | 1.260 | 0.125 |
| 1-5/8 | 1.509 | 0.058 |
| 1-3/4 | 1.680 | 0.035 |
| 1-3/4 | 1.652 | 0.049 |
| 1-3/4 | 1.634 | 0.058 |
| 1-3/4 | 1.584 | 0.083 |
| 1-7/8 | 1.759 | 0.058 |
| 2 | 1.902 | 0.049 |
| 2 | 1.884 | 0.058 |
| 2 | 1.87 | 0.065 |
| 2-1/4 | 2.152 | 0.049 |
| 2-1/4 | 2.120 | 0.065 |
| 2-1/4 | 1.959 | 0.083 |
| 2-1/4 | 2.000 | 0.125 |
| 1-1/2 | 2.430 | 0.035 |
| 1-1/2 | 2.402 | 0.049 |
| 1-1/2 | 2.370 | 0.065 |
| 3 | 2.930 | 0.035 |
| 3 | 2.870 | 0.065 |
| 4 | 3.902 | 0.049 |
Click to see all
