Widely used in marine, aerospace, automotive and construction industries due to its excellent corrosion resistance, high strength and good weldability. It is suitable for manufacturing high-strength and corrosion-resistant structural parts.
MASTAR 5083 aluminum bar product introduction
Stock product types: 5083 aluminum alloy extruded round bar; 5083 aluminum alloy extruded square bar; 5083 aluminum alloy extruded hexagonal bar; 5083 aluminum alloy extruded flat bar
Equivalent product names: AA 5083; EN AW-AlMg4,5Mn0,7; OLD AG4,5MC; WNr 3.3547; UNS A95083, ISO AlMg4,5Mn0,7; DIN AlMg4,5Mn
Length: 1-6m; can be cut to any length.
Surface treatment: mill finish, anodized, bright, black, polished …

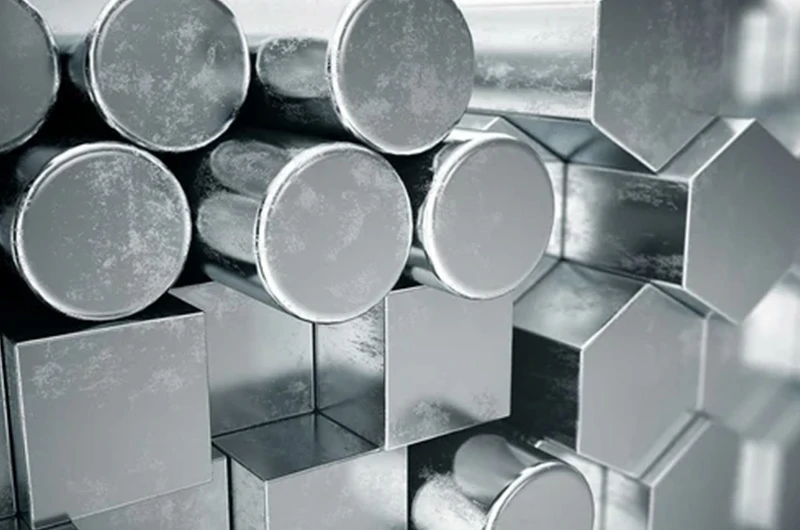

MASTAR 5083 aluminum extruded bar rod
5083 aluminum extruded round bar
With excellent high strength and corrosion resistance, it is particularly suitable for manufacturing high-load circular components and structural parts, and can provide long-term stable performance in marine and harsh environments.
| Hot-selling dimensions table for 5083 aluminum round bars/mm | |||||||||
| 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 |
| 15 | 16 | 17 | 18 | 19 | 20 | twenty one | twenty two | twenty three | twenty four |
| 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 |
| 35 | 36 | 37 | 38 | 39 | 40 | 42 | 45 | 46 | 48 |
| 50 | 52 | 55 | 57 | 58 | 60 | 62 | 65 | 70 | 75 |
| 80 | 85 | 90 | 95 | 100 | 105 | 110 | 115 | 120 | 125 |
| 130 | 135 | 140 | 145 | 150 | 155 | 160 | 165 | 170 | 175 |
| 180 | 185 | 190 | 195 | 200 | 210 | 220 | 230 | 240 | 250 |
| 260 | 270 | 280 | 290 | 300 | 310 | 320 | 330 | 340 | 350 |
| 360 | 370 | 380 | 390 | 400 | 410 | 420 | |||
5083 aluminum extruded square bar
Provides excellent strength for heavy loads and structural applications. Square cross-section allows for precise machining and assembly, suitable for structural use.
| Hot-selling dimensions table for 5083 aluminum square bars/mm | |||||||||
| 6.35×6.35 | 10×10 | 12×12 | 12.7×12.7 | 15×15 | 20×20 | 25×25 | 30×30 | 35×35 | 40×40 |
| 50×50 | 60×60 | 70×70 | 80×80 | 90×90 | 100×100 | 110×110 | 120×120 | 130×130 | 150×150 |
5083 aluminum extruded hexagonal bar
Suitable for structural and mechanical parts requiring high strength and durability. The hexagonal cross section provides better fixation and contact surface, suitable for specific installation and application needs.
| Hot-selling dimensions table for 5083 aluminum hex bars/mm | ||
| Metric | Inch | Reference weight (KG/ Metre ) |
| 1" | 25mm | 1.373 |
| 1.1/4 " | 31.75mm | 2.146 |
| 2 " | 50.8mm | 5.493 |
| 2.1/2" | 63.5mm | 8.587 |
| 3' | 76.2mm | 12.359 |
| 4 " | 101.6mm | 21.971 |
| 4.1/2" | 114.5mm | 28.85 |
| 5" | 127.0mm | 34.329 |
| 5.1/2" | 139.7mm | 41.539 |
| 6' | 152.4mm | 49.434 |
5083 aluminum extruded flat bar
The flat cross section provides a large contact area, offering strong structural support and a wide contact surface for applications subject to high loads.
| Hot-selling thickness for 5083 Aluminum flat Bars/mm | |||
| thickness | Reference weight | thickness | Reference weight |
| 6 | 0.076 Kg/m | 11 | 0.257 Kg/m |
| 7 | 0.104 Kg/m | 12.5 | 0.305 Kg/m |
| 8 | 0.136 Kg/m | 13 | 0.331 Kg/m |
| 9 | 0.172 Kg/m | 14 | 0.358 Kg/m |
| 10 | 0.191 Kg/m | 16 | 0.416 Kg/m |
| 11 | 0.212 Kg/m | 16.5 | 0.543 Kg/m |
| 12 | 0.257 Kg/m | 18 | 0.577 Kg/m |
MASTAR 5083 aluminum bar other hot selling products
- 5083 aluminum cold finish round bars
- 5083 aluminium half round bar
- ASTM B211 aluminum 5083 cold drawn bars
- 5083 aluminum hot rolled round bar
- Aluminum alloy 5083 hot finish bar
- Aluminum 5083 cold rolled round bar
- Aluminium 5083 round rod
- Aluminum 5083 pump shaft quality bar
5083 aluminum rod chemical composition
| 5083 aluminum bar chemical composition reference table | |
| Aluminum (Al) | 92.4 to 95.6 |
| Magnesium (Mg) | 4.0 to 4.9 |
| Manganese (Mn) | 0.4 to 1.0 |
| Silicon (Si) | 0 to 0.4 |
| Iron (Fe) | 0 to 0.4 |
| Chromium (Cr) | 0.050 to 0.25 |
| Zinc (Zn) | 0 to 0.25 |
| Titanium (Ti) | 0 to 0.15 |
| Copper (Cu) | 0 to 0.1 |
| Residuals | 0 to 0.15 |
5083 aluminum bar mechanical properties
| Alloy | Temper | Dimensions /mm | Room temperature Test Result | |||
| Tension strength /MPa | Yield strength /MPa | Elongation/% | ||||
| A50mm | A | |||||
| Not less than | ||||||
| 5083 | O, H111 | All | 270 | 110 | 10 | 12 |
| H112 | All | 270 | 125 | 10 | 12 | |
| F | All | 270 | 110 | 10 | 12 | |
| H12 , H22, H32 | ≤30 | 280 | 200 | 4 | 6 | |
MASTAR 5083 aluminum bar product advantages
- Excellent corrosion resistance: Especially suitable for marine environment and chemical industry, able to resist corrosion in harsh environment.
- High Strength: excels in non-heat treatable alloys, offering high strength and structural stability.
- Excellent weldability: easy to weld, suitable for manufacturing complex structures that require connection and assembly.
- Good fatigue resistance: Able to withstand repeated load applications and not prone to fatigue cracks.
- High plasticity: Even at low temperatures, it still has good forming properties and is suitable for cold processing.
MASTAR 5083 aluminum bar cooperation areas
- Marine Industry: Due to its excellent corrosion resistance, it is often used in marine applications such as hulls, decks, and ship structures.

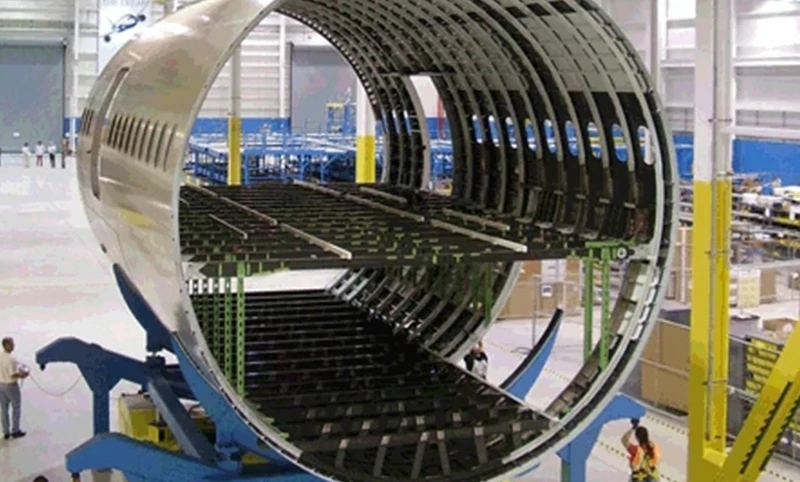

- Aerospace: Used in manufacturing aircraft parts and storage tanks due to its high strength and light weight.
- Automobile industry: suitable for the production of fuel tanks, frames, chassis and other parts that require strength and lightness.

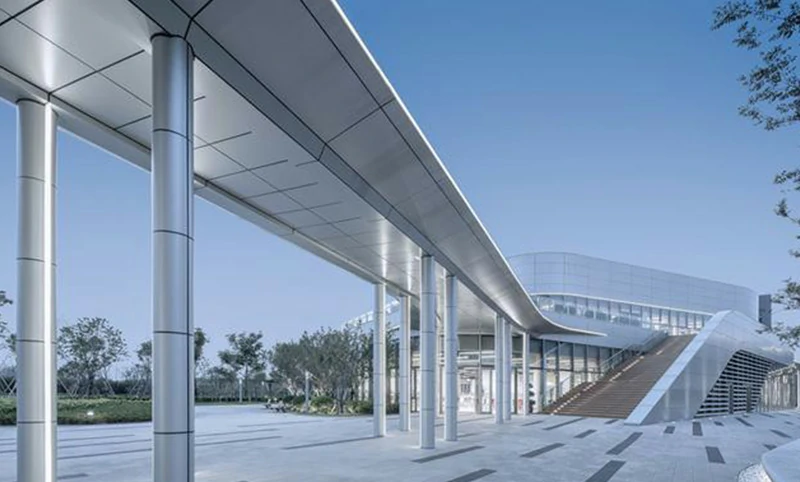

- Buildings and bridges: often used in high-strength structural parts and building materials with high corrosion resistance requirements.

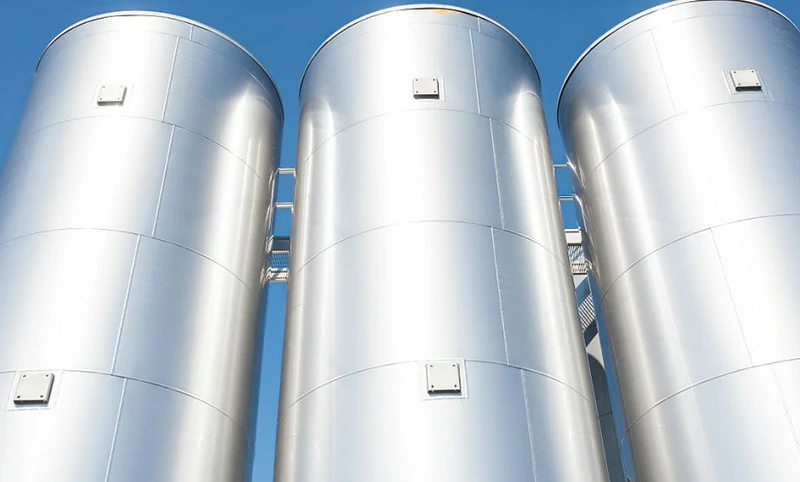

- Pressure vessels: used to manufacture storage tanks and other high-pressure equipment because of their superior corrosion and fatigue resistance.
5083 aluminum rod buying guide
1.How to calculate the weight of 5083 aluminum bars when purchasing
When purchasing aluminum bars on MASTAR, you can click [Calculator Service] to easily calculate the weight of 5083 aluminum bars.
2.What is the tolerance of 5083 aluminum bar?
The following are the various tolerances for different forms of 5083 aluminum alloy; they are:
- Round pull rods – tolerance range is between 0.3 and 2.5 mm.
- Square pull rods - tolerance values range from 0.3 to 1.7 mm.
- Flat steel – Tolerance values range from 0.35 to 1.4 mm.
- Cold rolled sheet - tolerance values range from 0.03 to 0.22 mm.
3.5083 aluminum bar price
5083 aluminum bar price = (LME ingot price + processing fee) × weight + packaging fee + transportation fee
Please contact the sales staff to inquire about the price and processing fee per ton of various specifications of aluminum bars. The processing fee of 5083 aluminum bars of different sizes may vary greatly, and we will provide you with the best quotation.
4.How to choose 5083 Aluminum Bar supplier/stockist?
When choosing a 5083 aluminum bar supplier, it is important to consider several factors to ensure you receive high-quality material and reliable service.
- Customized service: MASTAR can provide customized service according to customer needs. You only need to inform the length, quantity, surface finish, cutting, bending, color coating, end use and other special requirements.
- Competitive Price: Our products are priced competitively and we offer reasonable discounts for large quantities, giving you better prices and quality service.
- After-sales support: We provide fast after-sales support to ensure that you get timely help and support when using our products.
- Fast Delivery: We have abundant inventory to ensure fast shipment of any product, saving time for your project.
5.MASTAR 5083 aluminum rod packaging
- Plastic or kraft paper packaging with moisture-proof desiccant inside.
- Mounted on wooden pallets, reinforced with steel straps and supplied with fumigation certificate.
- Meets GB/T3199 standard requirements.
- Packaging can be customized according to other customer requirements.
6.MASTAR 5083 aluminum rod product quality assurance
- Mechanical Testing
- Chemical testing and spectroscopy
- Hardness test
- Pitting test
- Eddy Current Testing
- Bending and crushing tests
