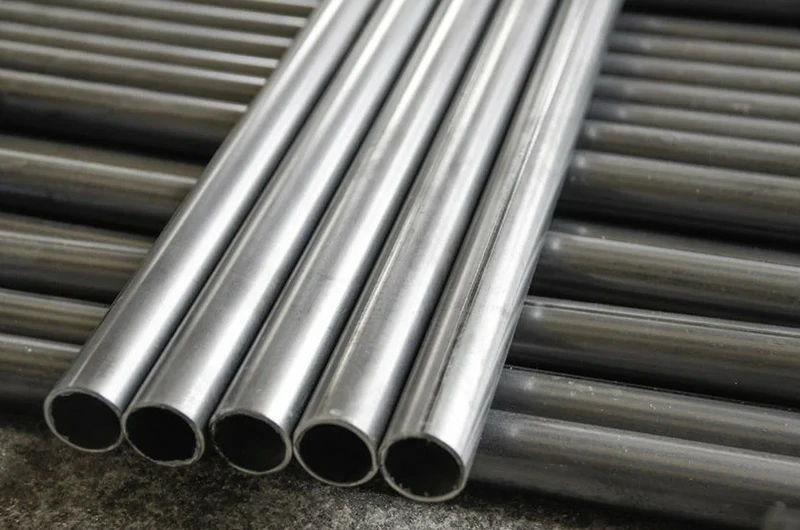

2A12 aluminum tube is a high-strength aluminum-copper alloy with excellent machinability, fatigue resistance and structural integrity. It is often used in aerospace components, frames and other structures that require strength and weight balance. It also has good corrosion resistance and welding properties, making it a reliable choice in various engineering and industrial applications.
Mastar can provide 2A12 aluminum tubes in various sizes, and can also provide various customized projects, such as cutting, bending, anodizing, powder coating, etc. If you have any needs, please contact us. Click to view the detailed size of 2A12 aluminum tube stock.
Mastar 2A12 aluminum tube product types
To meet different performance and fabrication requirements, Mastar supplies 2A12 aluminum tubes in a wide range of types, categorized by both processing method and shape:
- Drawn seamless tubes – Ideal for high-precision applications requiring tight dimensional tolerances and superior surface finish.
- Extruded seamless tubes – Suitable for structural applications where high strength and efficiency are essential.

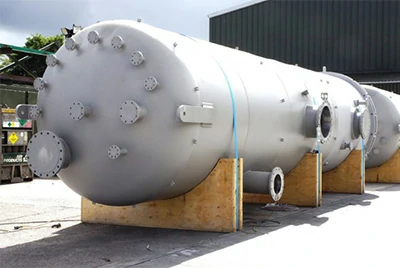

- Thick-walled tubes – Used in pressure vessels, heavy-duty mechanical parts, or hydraulic systems where structural durability is critical.
- Thin-walled tubes – Preferred in lightweight frameworks, aerospace interiors, and heat-exchange components.
- 2A12 aluminum tubes in various shapes — including round, square, rectangular, flat, and custom-formed profiles to meet complex design needs.
With strong in-house processing capabilities and a wide inventory of extrusion and drawing equipment, Mastar can supply 2A12 aluminum tubes in all standard forms, and also offers other alloy options by shape or tube type. You can browse by product type to explore compatible materials for your project.
Characteristics of 2A12 aluminum tube
High strength and hardness: After heat treatment, the strength of 2A12 aluminum tube can reach more than 470MPa.
Strong heat resistance: Suitable for use in working environments up to 150℃.
Good weldability: 2A12 alloy has excellent spot welding and seam welding performance, which is very suitable for the manufacture of complex structural parts.
Poor corrosion resistance: Due to the weak corrosion resistance of 2A12 aluminum, users must perform anodizing or other anti-corrosion treatment when using it outdoors or in humid environments.
Poor processability: In the annealed state, the material has low processability and requires the use of specific cutting tools and processes.
Application of 2A12 aluminum tube
Aerospace: 2A12 aluminum tube has high strength, toughness and corrosion resistance. It is widely used in the aerospace field to manufacture aircraft structural parts, fuel tanks, wings and other key components. For similar high-performance options, you can also explore our 2024 aluminum tube and 7075 aluminum tube, both known for their excellent fatigue resistance and strength-to-weight ratio.

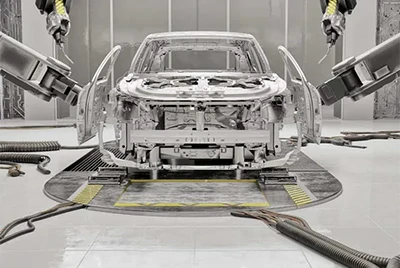

Automobile Manufacturing: 2A12 aluminum alloy is also used in the automotive field for body structures, chassis parts and engine components to achieve lightweight vehicles. For enhanced corrosion resistance or better extrusion formability, consider 6061 aluminum tube or 7005 aluminum tube.
Shipping and Railways: Commonly used in large molds, mechanical parts, and pressure vessels. If your project requires higher corrosion resistance in marine environments, 5083 aluminum tube is a preferred marine-grade option.
Sports Equipment: Thanks to its lightweight and high strength, 2A12 is widely applied in sports equipment like bicycle frames, golf clubs, and skis. Depending on the shaping complexity or required hardness, alternatives such as 6063 aluminum tube and 2A14 aluminum tube may also be suitable.
2A12 aluminum tube chemical composition
| Elements | Composition(%) |
| Si | 0-0.50 |
| Cu | 3.8 – 4.9 |
| Mg | 1.2 – 1.8 |
| Zn | ≤ 0.30 |
| Mn | 0.30 – 0.90 |
| Ti | ≤ 0.15 |
| Ni | ≤ 0.10 |
| Fe | 0.000 – 0.500 |
| Fe + Ni | 0.000 – 0.500 |
| Al | Remainder |
| Other(each) | ≤ 0.05 |
| Other(total) | ≤ 0.10 |
The 2A12 series aluminum tube has the highest copper content, about 3.8-4.9%, so it has extremely high hardness and is very suitable for situations where high strength and high hardness are required.
Mechanical properties of 2A12 aluminum tube
| Alloy | Temper | Tensile Strength(MPa) | Yield Strength(MPa) | Elongation (%) | Hardness HB |
| 2A12 | T4 | ≥ 390 | ≥ 255 | ≥ 10 | 120 |
Heat treatment specifications for 2A12 aluminum tubes
Homogenization annealing: heating at 480-495℃; keeping warm for 12-14h; furnace cooling.
Full annealing: heating at 390-430℃; keeping warm for 30-120min; furnace cooling to 300℃, air cooling.
Rapid annealing: heating at 350-370℃; keeping warm for 30-120min; air cooling.
Quenching and aging: quenching at 495-505℃, water cooling; artificial aging at 185-195℃, 6-12h, air cooling; natural aging: room temperature for 96h.
Why choose Mastar?
Customized service: Provide a variety of specifications and surface treatments to meet the personalized needs of customers.
Complete certification: All products are certified by ISO, CE and other international standards to ensure reliable product quality.
Fast delivery: Sufficient inventory, short delivery time, to meet the needs of urgent orders.
Quick response: Respond to customer demands and quotations quickly, and give customers the most competitive prices
Price update: According to the international aluminum price, update the price for customers in real time to let customers know the latest price.
Free samples: All samples can be provided free of charge, and customers can place orders after passing the test.
Mastar's 2A12 aluminum tube buying guide
Before buying 2A12 aluminum tube from Mastar, please confirm the size and quantity you need. Then, contact our customer service team and we will provide you with the best quality products and the most competitive market prices.
2A12 aluminum tube price
2A12 aluminum tube price: (LME ingot price + processing fee) × weight + packaging fee + transportation fee
Please contact Mastar for price and processing fee per ton of various specifications of aluminum tubes. The processing fee of different sizes of 2A12 aluminum tubes may vary greatly, and we will provide you with the best quotation.
2A12-T6 aluminum tube is the most common ordering status.
2A12 aluminum tube surface treatment
- Anodizing treatment
- Electroplating
- Powder coating, fluorocarbon coating
- Sandblasting
2A12 aluminum tube quality assurance
- Appearance and size inspection
- Mechanical property inspection, such as tensile strength, elongation, cross-sectional shrinkage, etc.
- Ultrasonic inspection
- Chemical analysis
- Hardness inspection
- Pitting protection test
- Permeability test
- Intergranular corrosion test
- Impact analysis
- Metallographic test
2A12 aluminum tube packaging
- Plastic or kraft paper packaging with moisture-proof desiccant inside.
- Mounted on wooden pallets, reinforced with steel straps, and provided with fumigation certificate.
- Complies with GB/T3199 standard requirements.
- Packaging can be customized according to other customer requirements.
Mastar's 2A12 aluminum tube stock dimensions
Mastar has 2A12 aluminum tubes in T4 state in stock. All sizes can be cut. If there is no suitable size in the table below, please contact us in time to provide you with the best solution.
| Product | Temper | OD(mm) | Wall(mm) | OD(inch) | Wall(inch) |
| 2A12 aluminum tube pipe | T4 | 12mm | 2mm | 0.47" | 0.08" |
| 2A12 aluminum tube pipe | T4 | 16mm | 1.5mm | 0.63" | 0.06" |
| 2A12 aluminum tube pipe | T4 | 20mm | 5mm | 0.79" | 0.2" |
| 2A12 aluminum tube pipe | T4 | 22mm | 6mm | 0.87" | 0.24" |
| 2A12 aluminum tube pipe | T4 | 24mm | 5mm | 0.94" | 0.2" |
| 2A12 aluminum tube pipe | T4 | 26mm | 5mm | 1.02" | 0.2" |
| 2A12 aluminum tube pipe | T4 | 28mm | 6mm | 1.1" | 0.24" |
| 2A12 aluminum tube pipe | T4 | 28mm | 7mm | 1.1" | 0.28" |
| 2A12 aluminum tube pipe | T4 | 30mm | 5mm | 1.18" | 0.2" |
| 2A12 aluminum tube pipe | T4 | 32mm | 6mm | 1.26" | 0.24" |
| 2A12 aluminum tube pipe | T4 | 34mm | 6mm | 1.34" | 0.24" |
| 2A12 aluminum tube pipe | T4 | 35mm | 5mm | 1.38" | 0.2" |
| 2A12 aluminum tube pipe | T4 | 36mm | 8mm | 1.42" | 0.31" |
| 2A12 aluminum tube pipe | T4 | 38mm | 5mm | 1.5" | 0.2" |
| 2A12 aluminum tube pipe | T4 | 38mm | 7mm | 1.5" | 0.28" |
| 2A12 aluminum tube pipe | T4 | 38mm | 9mm | 1.5" | 0.35" |
| 2A12 aluminum tube pipe | T4 | 40mm | 5mm | 1.57" | 0.2" |
| 2A12 aluminum tube pipe | T4 | 45mm | 5mm | 1.77" | 0.2" |
| 2A12 aluminum tube pipe | T4 | 48mm | 6mm | 1.89" | 0.24" |
| 2A12 aluminum tube pipe | T4 | 48mm | 9mm | 1.89" | 0.35" |
| 2A12 aluminum tube pipe | T4 | 48mm | 12mm | 1.89" | 0.47" |
| 2A12 aluminum tube pipe | T4 | 50mm | 5mm | 1.97" | 0.2" |
| 2A12 aluminum tube pipe | T4 | 50mm | 7mm | 1.97" | 0.28" |
| 2A12 aluminum tube pipe | T4 | 50mm | 8mm | 1.97" | 0.31" |
| 2A12 aluminum tube pipe | T4 | 50mm | 10mm | 1.97" | 0.39" |
| 2A12 aluminum tube pipe | T4 | 50mm | 13mm | 1.97" | 0.51" |
| 2A12 aluminum tube pipe | T4 | 55mm | 8mm | 2.17" | 0.31" |
| 2A12 aluminum tube pipe | T4 | 58mm | 10mm | 2.28" | 0.39" |
| 2A12 aluminum tube pipe | T4 | 60mm | 6mm | 2.36" | 0.24" |
| 2A12 aluminum tube pipe | T4 | 60mm | 8mm | 2.36" | 0.31" |
| 2A12 aluminum tube pipe | T4 | 60mm | 10mm | 2.36" | 0.39" |
| 2A12 aluminum tube pipe | T4 | 61mm | 6.5mm | 2.4" | 0.26" |
| 2A12 aluminum tube pipe | T4 | 62mm | 12.5mm | 2.44" | 0.49" |
| 2A12 aluminum tube pipe | T4 | 65mm | 10mm | 2.56" | 0.39" |
| 2A12 aluminum tube pipe | T4 | 68mm | 14mm | 2.68" | 0.55" |
| 2A12 aluminum tube pipe | T4 | 70mm | 10mm | 2.76" | 0.39" |
| 2A12 aluminum tube pipe | T4 | 70mm | 15mm | 2.76" | 0.59" |
| 2A12 aluminum tube pipe | T4 | 73mm | 11.5mm | 2.87" | 0.45" |
| 2A12 aluminum tube pipe | T4 | 75mm | 17.5mm | 2.95" | 0.69" |
| 2A12 aluminum tube pipe | T4 | 80mm | 7mm | 3.15" | 0.28" |
| 2A12 aluminum tube pipe | T4 | 80mm | 10mm | 3.15" | 0.39" |
| 2A12 aluminum tube pipe | T4 | 80mm | 15mm | 3.15" | 0.59" |
| 2A12 aluminum tube pipe | T4 | 90mm | 15mm | 3.54" | 0.59" |
| 2A12 aluminum tube pipe | T4 | 98mm | 10mm | 3.86" | 0.39" |
| 2A12 aluminum tube pipe | T4 | 100mm | 30mm | 3.94" | 1.18" |
| 2A12 aluminum tube pipe | T4 | 110mm | 10mm | 4.33" | 0.39" |
| 2A12 aluminum tube pipe | T4 | 110mm | 20mm | 4.33" | 0.79" |
| 2A12 aluminum tube pipe | T4 | 110mm | 25mm | 4.33" | 0.98" |
| 2A12 aluminum tube pipe | T4 | 120mm | 10mm | 4.72" | 0.39" |
| 2A12 aluminum tube pipe | T4 | 120mm | 20mm | 4.72" | 0.79" |
| 2A12 aluminum tube pipe | T4 | 120mm | 30mm | 4.72" | 1.18" |
| 2A12 aluminum tube pipe | T4 | 125mm | 10mm | 4.92" | 0.39" |
| 2A12 aluminum tube pipe | T4 | 130mm | 10mm | 5.12" | 0.39" |
| 2A12 aluminum tube pipe | T4 | 130mm | 15mm | 5.12" | 0.59" |
| 2A12 aluminum tube pipe | T4 | 130mm | 20mm | 5.12" | 0.79" |
| 2A12 aluminum tube pipe | T4 | 130mm | 30mm | 5.12" | 1.18" |
| 2A12 aluminum tube pipe | T4 | 135mm | 20mm | 5.31" | 0.79" |
| 2A12 aluminum tube pipe | T4 | 140mm | 10mm | 5.51" | 0.39" |
| 2A12 aluminum tube pipe | T4 | 140mm | 20mm | 5.51" | 0.79" |
| 2A12 aluminum tube pipe | T4 | 140mm | 30mm | 5.51" | 1.18" |
| 2A12 aluminum tube pipe | T4 | 140mm | 40mm | 5.51" | 1.57" |
| 2A12 aluminum tube pipe | T4 | 150mm | 10mm | 5.91" | 0.39" |
| 2A12 aluminum tube pipe | T4 | 150mm | 20mm | 5.91" | 0.79" |
| 2A12 aluminum tube pipe | T4 | 150mm | 30mm | 5.91" | 1.18" |
| 2A12 aluminum tube pipe | T4 | 150mm | 50mm | 5.91" | 1.97" |
| 2A12 aluminum tube pipe | T4 | 160mm | 10mm | 6.3" | 0.39" |
| 2A12 aluminum tube pipe | T4 | 160mm | 15mm | 6.3" | 0.59" |
| 2A12 aluminum tube pipe | T4 | 160mm | 20mm | 6.3" | 0.79" |
| 2A12 aluminum tube pipe | T4 | 160mm | 30mm | 6.3" | 1.18" |
| 2A12 aluminum tube pipe | T4 | 160mm | 40mm | 6.3" | 1.57" |
| 2A12 aluminum tube pipe | T4 | 160mm | 50mm | 6.3" | 1.97" |
| 2A12 aluminum tube pipe | T4 | 160mm | 60mm | 6.3" | 2.36" |
| 2A12 aluminum tube pipe | T4 | 170mm | 10mm | 6.69" | 0.39" |
| 2A12 aluminum tube pipe | T4 | 170mm | 30mm | 6.69" | 1.18" |
| 2A12 aluminum tube pipe | T4 | 170mm | 60mm | 6.69" | 2.36" |
| 2A12 aluminum tube pipe | T4 | 180mm | 20mm | 7.09" | 0.79" |
| 2A12 aluminum tube pipe | T4 | 180mm | 30mm | 7.09" | 1.18" |
| 2A12 aluminum tube pipe | T4 | 180mm | 40mm | 7.09" | 1.57" |
| 2A12 aluminum tube pipe | T4 | 180mm | 50mm | 7.09" | 1.97" |
| 2A12 aluminum tube pipe | T4 | 190mm | 10mm | 7.48" | 0.39" |
| 2A12 aluminum tube pipe | T4 | 190mm | 20mm | 7.48" | 0.79" |
| 2A12 aluminum tube pipe | T4 | 190mm | 40mm | 7.48" | 1.57" |
| 2A12 aluminum tube pipe | T4 | 190mm | 50mm | 7.48" | 1.97" |
| 2A12 aluminum tube pipe | T4 | 200mm | 10mm | 7.87" | 0.39" |
| 2A12 aluminum tube pipe | T4 | 200mm | 20mm | 7.87" | 0.79" |
| 2A12 aluminum tube pipe | T4 | 200mm | 30mm | 7.87" | 1.18" |
| 2A12 aluminum tube pipe | T4 | 200mm | 50mm | 7.87" | 1.97" |
| 2A12 aluminum tube pipe | T4 | 200mm | 60mm | 7.87" | 2.36" |
| 2A12 aluminum tube pipe | T4 | 210mm | 30mm | 8.27" | 1.18" |
| 2A12 aluminum tube pipe | T4 | 210mm | 60mm | 8.27" | 2.36" |
| 2A12 aluminum tube pipe | T4 | 210mm | 70mm | 8.27" | 2.76" |
| 2A12 aluminum tube pipe | T4 | 220mm | 20mm | 8.66" | 0.79" |
| 2A12 aluminum tube pipe | T4 | 220mm | 60mm | 8.66" | 2.36" |
| 2A12 aluminum tube pipe | T4 | 230mm | 50mm | 9.06" | 1.97" |
| 2A12 aluminum tube pipe | T4 | 230mm | 60mm | 9.06" | 2.36" |
| 2A12 aluminum tube pipe | T4 | 230mm | 70mm | 9.06" | 2.76" |
| 2A12 aluminum tube pipe | T4 | 240mm | 30mm | 9.45" | 1.18" |
| 2A12 aluminum tube pipe | T4 | 240mm | 50mm | 9.45" | 1.97" |
| 2A12 aluminum tube pipe | T4 | 240mm | 60mm | 9.45" | 2.36" |
| 2A12 aluminum tube pipe | T4 | 240mm | 70mm | 9.45" | 2.76" |
| 2A12 aluminum tube pipe | T4 | 240mm | 80mm | 9.45" | 3.15" |
| 2A12 aluminum tube pipe | T4 | 250mm | 30mm | 9.84" | 1.18" |
| 2A12 aluminum tube pipe | T4 | 250mm | 40mm | 9.84" | 1.57" |
| 2A12 aluminum tube pipe | T4 | 250mm | 50mm | 9.84" | 1.97" |
| 2A12 aluminum tube pipe | T4 | 250mm | 60mm | 9.84" | 2.36" |
| 2A12 aluminum tube pipe | T4 | 250mm | 70mm | 9.84" | 2.76" |
| 2A12 aluminum tube pipe | T4 | 250mm | 80mm | 9.84" | 3.15" |
| 2A12 aluminum tube pipe | T4 | 260mm | 60mm | 10.24" | 2.36" |
| 2A12 aluminum tube pipe | T4 | 260mm | 70mm | 10.24" | 2.76" |
| 2A12 aluminum tube pipe | T4 | 260mm | 80mm | 10.24" | 3.15" |
| 2A12 aluminum tube pipe | T4 | 267mm | 27mm | 10.51" | 1.06" |
| 2A12 aluminum tube pipe | T4 | 300mm | 50mm | 11.81" | 1.97" |
