2A11 aluminum rod bar is a copper-aluminum alloy, one of the earliest types of hard aluminum, commonly known as standard hard aluminum. It has medium strength among the 2000 series aluminum alloys. Its plasticity is still good in annealed, as-quenched, and hot states, and it can be strengthened through heat treatment..
2A11 aluminum bar rod product details
| Diameter | 5-600mm |
| Length | 1000mm-6000mm or customized |
| Surface | Polished, brushed, sandblasted |
| Sample | Free |
| Package | Wooden pallets, waterproof paper, or according to customer requirements |
Popular 2A11 aluminum bar rod

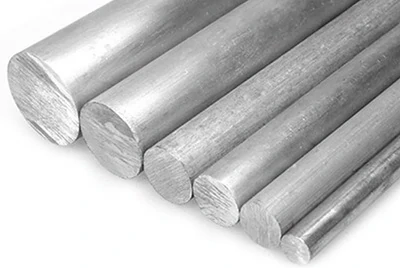

2A11 extruded aluminum round bar- OD: 5-600mm
- Applications: aircraft structural parts, wing beams, engines, vehicle chassis.

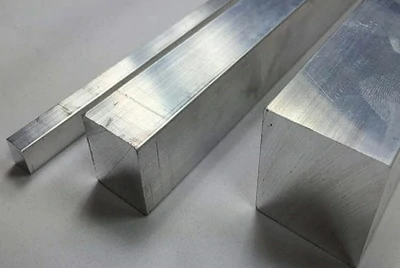

2A11 aluminum square bar- Features: square cross-section, can more stably bear and distribute loads.
- Diameter: 5*5mm-200*200mm
- Applications: supporting structures for aircraft, building structural components

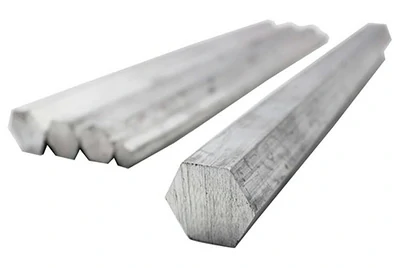

2A11 aluminum hex bar- Features: hexagonal cross-section is easier to grip and apply force.
- Side length: 5-200mm
- Applications: nuts, bolts, and other components for aircraft.

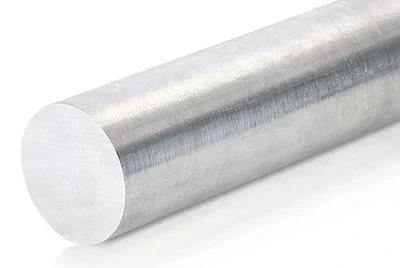

2A11 cold drawn aluminum rod bar- 2A11 aluminum cold drawn rod bar has higher strength, hardness, and surface finish.
- Applications: high-strength mechanical parts, precision instruments, and load-bearing structures
In addition to 2A11 aluminum bars, Mastar also supplies a wide range of aluminum bar alloys in various shapes such as round bars, square bars, flat bars, and hex bars. If you are looking for alternatives with similar machinability or mechanical strength, feel free to explore our whole aluminum bar product pages or contact us for assistance.Quick Quote
2A11 aluminum bar hot-selling size reference
| Product | Manufacture Method |
| 0.25"diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 0.5" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 0.75" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 1" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 1.25" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 1.5" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 1.75" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 2" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 2.25" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 2.5" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 2.75" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 3" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 3.25" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 3.5" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 3.75" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 4" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 4.5" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 5" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 5.5" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 6" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 7" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 8" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 9" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
| 10" diameter 2A11-T4 Aluminum Round Bar | COLD FINISH |
2A11 aluminum bar performance
| Temper | Diameter | Tensile strength | Yield strength | Elongation | Hardness |
| T1, T4 | <=150mm | 370MPa | 215Mpa | 12% | 120HB |
2A11 aluminum bar features
- 2A11 aluminum bar has high strength and good heat resistance, suitable for components operating below 150°C.
- At temperatures above 125°C, 2A11 alloy has higher strength than 7075 alloy.
- The alloy has good formability in hot, annealed, and newly quenched states and can be strengthened through heat treatment, though the process is strict.
- 2A11 aluminum alloy has poor corrosion resistance but can be effectively protected with pure aluminum cladding.
- While welding may cause cracks, it can be welded using special techniques and can also be riveted.
2A11 aluminum bar heat treatment specifications
- Homogenizing annealing: heat to 480–495°C; hold for 12–14 hours; furnace cool.
- Full annealing: heat to 390–430°C; hold for 30–120 minutes; air cool.
- Rapid annealing: heat to 350–370°C; hold for 30–120 minutes; air cool.
- Quenching and aging: quench at 495–510°C, water cool; artificial aging at 155–165°C, 6–10 hours, air cool; natural aging: 96 hours at room temperature.
2A11 aluminum bar chemical composition
| Elements | Composition |
| Si | 0 - 0.7% |
| Cu | 3.8% - 4.8% |
| Mg | 0.4% - 0.8% |
| Zn | 0 - 0.3% |
| Mn | 0.4% - 0.8% |
| Ti | 0 - 0.15% |
| Ni | 0 - 0.10% |
| Fe | 0 - 0.7% |
| Fe + Ni | 0 - 0.7% |
| Al | Remainder |
| Other(each) | 0 - 0.05% |
| Other(total) | 0 - 0.10% |
What services can Mastar provide for you?
Custom services: provide customized 2A11 aluminum bars in different sizes and shapes, including round bars, square bars, and hex bars, according to customer requirements.
Fast delivery: ensure quick order fulfillment from order placement to production completion.
Free samples: offer free sample services to allow customers to test and evaluate product quality before bulk purchasing.
Technical support: provide professional technical consultation and support, including material selection, processing advice, and usage guidance, to help customers make the best use of 2A11 aluminum bars.
Quality assurance: a strict quality control system ensures that all 2A11 aluminum bar products meet relevant international standards and provide quality inspection reports to guarantee product reliability and consistency.
After-sales service: offer comprehensive after-sales service, including technical support and problem resolution, to ensure customers have no concerns during usage.
