6A02 aluminum alloy is a heat-treatable aluminum alloy with good formability, weldability, machinability and corrosion resistance. It is widely used in aerospace, machinery manufacturing and other high-performance structural parts. It has medium strength, high plasticity in annealing and hot state, and good plasticity after quenching and natural aging.
MASTAR 6A02 aluminum tube product introduction
Stock product types: 6A02 extruded tube, 6A02 forged tube, 6A02 drawn tube, 6A02 thin-walled tube, 6A02 seamless tube
Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Length: Can be cut to any length.
Surface treatment: mill finish, anodized, bright, black, polished …
Aluminum tube ends: flat end, bevel end, threaded end
MASTAR 6A02 aluminum tube hot sale alloy temper
- 6A02 T4 aluminum tube
- Naturally aged after solution treatment, offering high strength, good corrosion resistance, and excellent machinability, ideal for lightweight structural applications with high mechanical performance.
- 6A02 T6 Aluminum Tube
- The 6A02 T4 aluminum tube, naturally aged after solution treatment, offers high strength, corrosion resistance, and excellent machinability for lightweight, high-performance structures.
- 6A02 H32 aluminum tube
- The H32 state of 6A02 aluminum alloy strikes a balance between strength and hardness while maintaining good corrosion resistance
MASTAR 6A02 aluminum tube hot selling products

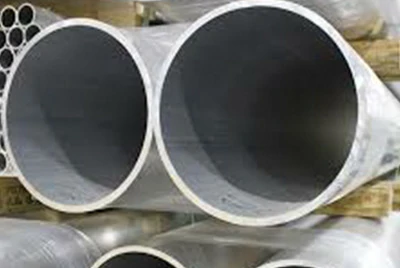

6A02 extruded tube- 6A02 aluminum extruded tube is manufactured by extrusion process. The tube has good dimensional accuracy and surface quality. It is suitable for high-strength and lightweight structural parts and is widely used in aerospace and automotive industries.
6A02 forged pipe- 6A02 aluminum forged tube is processed by forging process, with higher strength and toughness, suitable for demanding structural applications such as aviation equipment and high-stress mechanical parts.

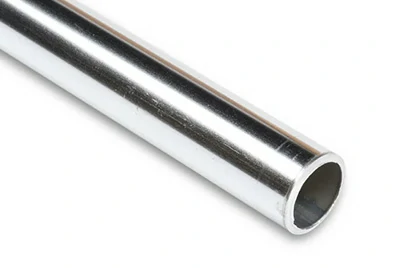

6A02 drawn tube- 6A02 aluminum drawn tube is manufactured by cold drawing process, with uniform wall thickness, high precision and good mechanical properties. It is widely used in precision machinery and high-demand transmission equipment.

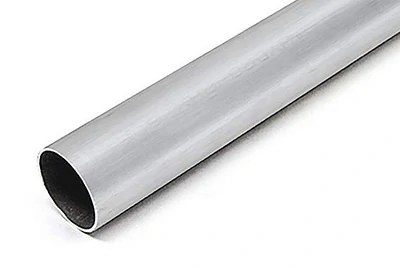

6A02 thin wall tube- 6A02 aluminum thin-walled tube is a thin-walled tube, suitable for applications with high lightweight requirements, such as aviation, aerospace and bicycles.

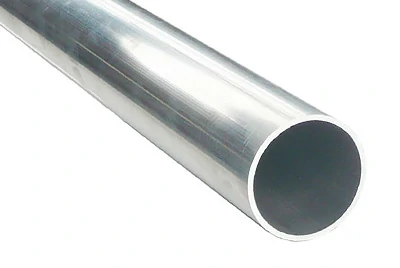

6A02 seamless pipe- 6A02 aluminum seamless pipe has no welding gaps, has excellent strength, pressure resistance and corrosion resistance, and is suitable for key piping components in high-pressure systems and precision machinery.

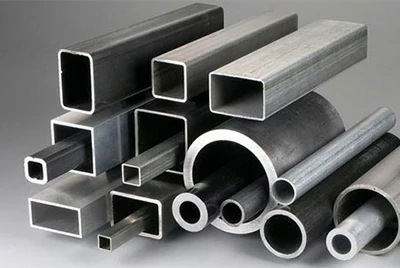

MASTAR 6A02 aluminum tube supply shape

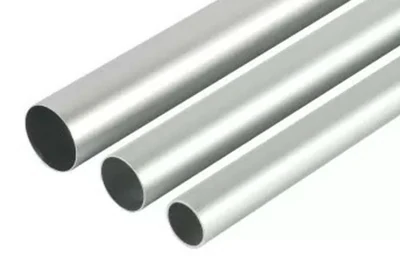

- 6A02 aluminum round tube
Outer diameter 6-360 mm, wall thickness 0.5-30 mm
- 6A02 aluminum square tube
Side length 6-220 mm, Wall thickness 0.5-20 mm
- 6A02 aluminum flat tube
Thickness 0.5-10mm, Width 10-300mm
- 6A02 rectangular tube
Aspect ratio not exceeding 6:1, wall thickness 0.5-20 mm
- 6A02 hexagonal tube
Outer diameter 6-220 mm, wall thickness 0.5-20 mm
- 6A02 Other custom extruded tubes
6A02 aluminum tube chemical composition
| Element | Component |
| Si | 0.5-1.2 |
| Fe | 0.5 |
| Cu | 0.2-0.6 |
| Mn | 0.15-0.35 |
| Mg | 0.45-0.9 |
| Zn | ≤0.25 |
| Ti | 0.15-0.4 |
| Cr | 0.45-0.9 |
| Zn | 0.2 |
| Other | 0.05 |
| Other total | 0.15 |
| Al | Bal |
6A02 aluminum tube mechanical properties reference table
| Alloy | Temper | Wall thickness/mm | Room temperature Test Result | |||
| Tension Strength/MPa | Yield Strength/MPa | Elongation/% | ||||
| A50mm | A | |||||
| Not less than | ||||||
| 6A02 | O | all | ≤145 | - | - | 17 |
| T4 | all | 205 | - | - | 14 | |
| T62 | all | 295 | - | - | 8 | |
| T6 | all | 295 | - | - | 8 | |
MASTAR 6A02 aluminum tube weight calculator
Use our weight calculator to reliably estimate the weight of aluminum alloy products. From sheets, tubes, bars, to simple profiles, Mastar Metal can provide you with the answers.
First, select an alloy, fill in the other required information, and the system will calculate the weight of the aluminum material for you.
Start by choosing an alloy...
0.00
*All weights shown using this metal weight calculator are for guidance only.
MASTAR 6A02 aluminum tube performance
- Medium strength: 6A02 aluminum alloy has medium strength and high mechanical properties in the -T6 state, and is suitable for structural parts that bear medium loads.
- Good plasticity: The alloy has good plasticity in both cold and hot states, and is suitable for manufacturing complex-shaped profiles, forgings, and aircraft, engine parts, and helicopter blades that require high plasticity.
- Corrosion resistance: 6A02 aluminum tube has excellent corrosion resistance in the natural aging state, and is particularly suitable for applications that require long-term corrosion resistance. However, in the artificial aging state, the alloy may have a tendency to intergranular corrosion and requires appropriate treatment.
- Machinability: 6A02 aluminum alloy has good processing performance and is suitable for the manufacture of bars, plates, tubes and profiles. It performs well in the field of mechanical structures and has similar mechanical properties to 6061 alloy.
- Good Weldability: The alloy can be welded by a variety of welding processes (such as spot welding, hydrogen atomic welding and gas welding) while maintaining structural integrity and maintaining its mechanical properties.
- Excellent anodic reaction performance: 6A02 aluminum alloy exhibits excellent anodic reaction ability and is often used in anodizing treatment, which can improve appearance and corrosion resistance through impurity removal, dyeing and coating processes.
MASTAR 6A02 aluminum tube cooperation areas
- Aerospace field: MASTAR 6A02 aluminum tube is widely used in aircraft structural parts, support frames, piping systems and other key components due to its high strength, light weight and corrosion resistance.

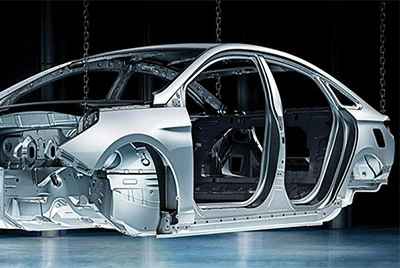

- Automobile industry: The aluminum tube is used to manufacture lightweight structural parts for automobiles, such as chassis components, frames, door beams, etc., to help improve fuel efficiency and reduce carbon emissions.
- Rail transit: 6A02 aluminum tubes are used as structural materials in high-speed trains, subways and light rail equipment, providing strength and stability while reducing the weight of the trains.
- Mechanical Manufacturing: MASTAR 6A02 aluminum tubes are used to manufacture high-stress components such as support structures and transmission shafts in mechanical equipment to meet the strength and durability requirements of mechanical engineering.

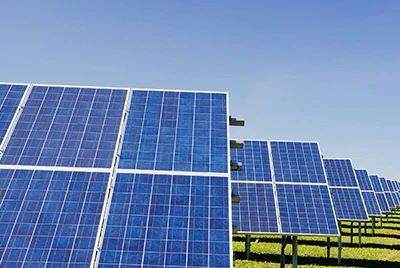

- Renewable energy sector: In renewable energy equipment such as solar energy and wind energy, 6A02 aluminum tubes are used for structural support and conductive systems to ensure the stability and long life of the equipment.
- Shipbuilding industry: Due to its corrosion resistance, 6A02 aluminum tube is suitable for structural parts and piping systems in marine equipment and shipbuilding, and can maintain stable performance for a long time in the marine environment.
Why MASTAR is the preferred supplier of 6A02 aluminum tube
- Fast delivery: We have abundant inventory to ensure fast shipment of any product, saving time for your project.
- Customized service: MASTAR can provide customized service according to customer needs. You only need to inform the length, quantity, surface finish, cutting, bending, color coating, end use and other special requirements.
- Competitive price: Our products are priced competitively and we offer reasonable discounts for large quantities, giving you better prices and quality service.
- After-sales support: We provide fast after-sales support to ensure that you get timely help and support when using our products.
