Mastar 6005 aluminum tube specification and certifications
Specification:ASTM B211, ASTM B 241, EN 755-2
Certification:NADCAP,ISO,RoHS,REACH
Mastar's 6005 aluminum tube popular product types

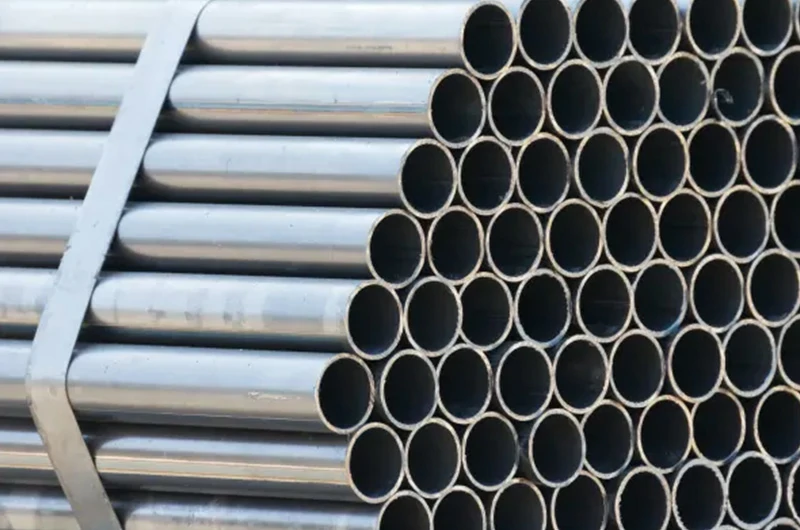

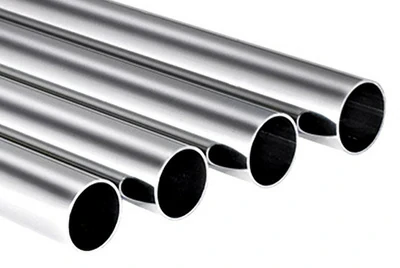

6005 extruded aluminum round tube- Outer diameter: 10mm – 260mm
- Wall thickness: 5mm - 20mm
- Application: handrail tube, step structure, structural tube
- View hot selling size table

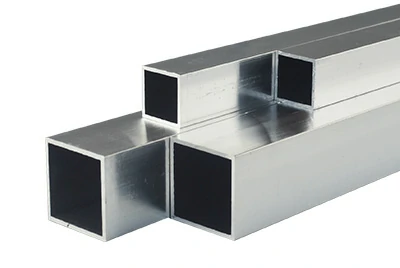

6005 Aluminum Square Tube- The square cross-section can provide stronger bending and torsion resistance, improving the stability of the overall structure.
- Application: Structural applications, fences, handrails, frames and columns.
- Width: 0.75" – 6"
- Wall: :0.065"-0.5"
- View hot selling size table

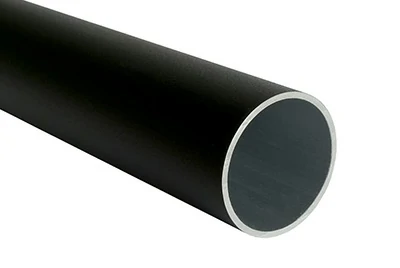

6005 Anodized Aluminum Tube- The corrosion resistance of 6005 aluminum tubes after anodizing will be greatly enhanced. Non-anodized aluminum tubes are more susceptible to environmental pollutants and decay over time.
Characteristics of 6005 aluminum tube
Corrosion resistance: This alloy has good corrosion resistance, which is one of its most notable features. The addition of silicon and magnesium contributes significantly to this property. Because the alloy resists the effects of salt water, it is common in marine applications.
Welding: You can weld 6005 aluminum using the TIG welding method. However, it is important to choose the welding rod carefully to prevent cracking. MIG welding is also suitable for joining, but the filler electrode should be aligned with the base metal.
Heat resistance: This aluminum alloy also has good heat resistance, making it suitable for work in extreme temperatures. 6005 aluminum will work well as long as the temperature is not above 150°C or below -60°C. This versatility allows 6005 aluminum to work reliably in critical industries.
Processing performance: Extrusion performance is good, but it does not perform well in producing thin-walled, complex shapes.
What are the fields of cooperation for 6005 aluminum tubes?
Rail transit vehicle body structure: 6005 aluminum tubes are widely used in the manufacture of light rail vehicles, railway coaches, and especially high-speed train bodies, making them essential materials in rail vehicle manufacturing.
High-speed train front: The medium strength, excellent plasticity, corrosion resistance, weldability, and formability of 6005 aluminum tubes have led to their application in welded structural components and high-speed train fronts in recent years. Their outstanding overall performance makes them key materials for achieving high-speed train operation.

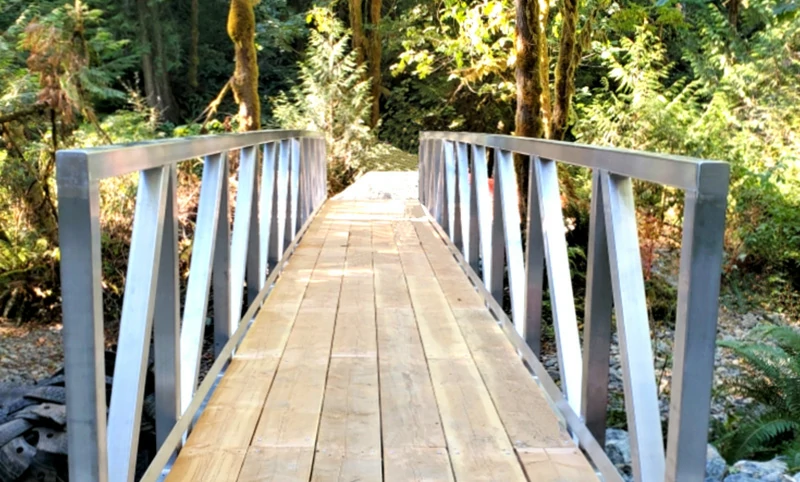

Bridge and railing construction: 6005 aluminum tubes are commonly used in applications such as fences and stair handrails.
Hot selling sizes of 6005 aluminum round tube
| OD(mm) | OD (inch) | Wall (mm) | Wall (inch) |
| 10mm | 0.39" | 5mm | 0.2" |
| 20mm | 0.79" | 5mm | 0.2" |
| 30mm | 1.18" | 6mm | 0.24" |
| 40mm | 1.57" | 8mm | 0.31" |
| 50mm | 1.97" | 10mm | 0.39" |
| 60mm | 2.36" | 10mm | 0.39" |
| 80mm | 3.15" | 12mm | 0.47" |
| 100mm | 3.94" | 12mm | 0.47" |
| 120mm | 4.72" | 15mm | 0.59" |
| 140mm | 5.51" | 15mm | 0.59" |
| 160mm | 6.3" | 18mm | 0.71" |
| 180mm | 7.09" | 18mm | 0.71" |
| 200mm | 7.87" | 20mm | 0.79" |
| 220mm | 8.66" | 20mm | 0.79" |
| 260mm | 10.24" | 20mm | 0.79" |
Hot selling sizes of 6005 aluminum round tube
| Product | Width | Wall | Lbs./Ft. |
| 6005-T5 aluminum square tube | 0.75" | 0.065" | 0.214 |
| 6005-T5 aluminum square tube | 0.75" | 0.125" | 0.371 |
| 6005-T5 aluminum square tube | 1" | 0.065" | 0.268 |
| 6005-T5 aluminum square tube | 1" | 0.125" | 0.512 |
| 6005-T5 aluminum square tube | 1.125" | 0.125" | 0.592 |
| 6005-T5 aluminum square tube | 1.25" | 0.09" | 0.486 |
| 6005-T5 aluminum square tube | 1.25" | 0.125" | 0.667 |
| 6005-T5 aluminum square tube | 1.313" | 0.125" | 0.697 |
| 6005-T5 aluminum square tube | 1.5" | 0.125" | 0.809 |
| 6005-T5 aluminum square tube | 1.563" | 0.125" | 0.847 |
| 6005-T5 aluminum square tube | 1.688" | 0.125" | 0.923 |
| 6005-T5 aluminum square tube | 1.75" | 0.125" | 0.959 |
| 6005-T5 aluminum square tube | 2" | 0.125" | 1.093 |
| 6005-T5 aluminum square tube | 2" | 0.188" | 1.625 |
| 6005-T5 aluminum square tube | 2" | 0.25" | 2.084 |
| 6005-T5 aluminum square tube | 2.313" | 0.125" | 1.313 |
| 6005-T5 aluminum square tube | 2.5" | 0.125" | 1.41 |
| 6005-T5 aluminum square tube | 2.5" | 0.188" | 2.087 |
| 6005-T5 aluminum square tube | 2.568" | 0.125" | 1.402 |
| 6005-T5 aluminum square tube | 2.625" | 0.125" | 1.484 |
| 6005-T5 aluminum square tube | 3" | 0.125" | 1.71 |
| 6005-T5 aluminum square tube | 3" | 0.188" | 2.52 |
| 6005-T5 aluminum square tube | 3" | 0.25" | 3.284 |
| 6005-T5 aluminum square tube | 3.437" | 0.188" | 2.905 |
| 6005-T5 aluminum square tube | 4" | 0.125" | 2.326 |
| 6005-T5 aluminum square tube | 4" | 0.25" | 4.464 |
6005 aluminum tube strict tolerance specifications
All Mastar 6005 aluminum tube tolerances strictly follow EN 754-7 specifications to ensure manufacturing accuracy.
Tolerances on thickness
| Thickness | Tolerances in % |
| 0.5 - 1 mm | ± 10 |
| 1 -2 mm | ± 9 |
| 2 -3 mm | ± 8 |
| >3 mm | ± 7 |
Tolerances on outside diameter
| Outside diameter in mm | tolerance % |
| 3 - 8 | ± 0.09 |
| 8 - 18 | ± 0.09 |
| 18 - 30 | ± 0.11 |
| 30 - 50 | ± 0.13 |
| 50 - 80 | ± 0.15 |
| 80 - 120 | ± 0.20 |
| 120 - 180 | ± 0.40 |
Tolerances on inside diameter
| Inside diameter in mm | tolerance % |
| 3 - 8 | ± 0.15 |
| 8 - 18 | ± 0.09 |
| 18 - 30 | ± 0.11 |
| 30 - 50 | ± 0.13 |
| 50 - 80 | ± 0.15 |
| 80 - 120 | ± 0.20 |
| 120 - 180 | ± 0.40 |
Characteristics of 6005 aluminum tube
- Density: 2.70 g/cm 3 or 169 lb/ft 3.
- Young's modulus: 69 GPa, or 10 Msi.
- Ultimate tensile strength: 190 to 300 MPa, or 28 to 44 ksi.
- Yield strength: 100 to 260 MPa, or 15 to 38 ksi.
- Thermal expansion: 23 μm/mK.
What services can Mastar provide for you?
As a professional 6005 aluminum tube supplier, Mastar always adheres to customer-centricity and continuously provides customers with high-quality products. We can provide you with the following services:
Customized production: Provide 6005 aluminum tubes of different specifications and sizes according to customer needs, and various surface treatment services to meet the special requirements of various applications.
Fast delivery: Rich inventory to ensure timely delivery to meet your production schedule.
Tailored solutions: Provide personalized solutions for different application fields and project requirements to help customers achieve the best use effect.
Long-term cooperation preferential policies: Provide long-term cooperative customers with preferential prices and flexible payment methods to reduce procurement costs and enhance competitiveness.
Market trend consultation: We will regularly provide the latest market dynamics and technical trends in the aluminum industry to help customers grasp the latest information and optimize procurement decisions.
