5456 Aluminum Alloy is a forged aluminum-magnesium alloy developed by adding Mn, Cr, Ti, and Be elements and strictly controlling impurity content. It offers good room-temperature strength and excellent seawater corrosion resistance. The alloy can be formed by rolling, extrusion, and cold working, which increases its strength but reduces its ductility. It is well-suited for the manufacture of high-strength welded structures and pressure vessels.
5456 aluminum is favored for its excellent weldability and machinability, and it is widely used in shipbuilding, storage tanks, and other structural applications, particularly where long-term durability and reliability are required in harsh marine environments.
Click to View 5456 Aluminum Tube Product Guide
Popular products of 5456 aluminum tube

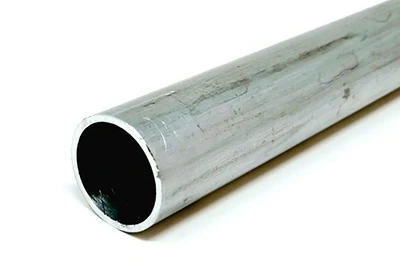

5456 seamless extrusion tube- Temper: O,H111,H112
- OD: 0.4"-16"(10-420mm)
- Spec: ASTM B241

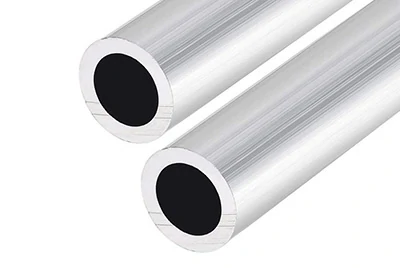

5456 drawn seamless tube- Temper: O
- OD: 0.4"-8"(200mm)
- Spec: ASTM B210

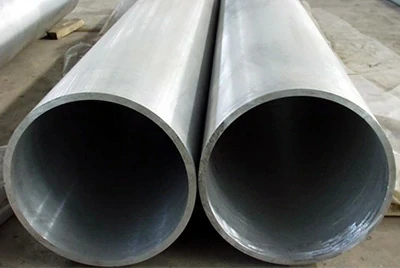

5456 large diameter aluminum tube- OD: 7.8"-52"(200-1320mm)
- Using the 500MN Vertical Hot Extrusion Unit, the tubes are produced with a seamless structure, offering a wide range of specifications and high production efficiency. The tool library is comprehensive, significantly reducing custom mold costs.
Mastar 5456 Aluminum Tube Featured Products
Does your project require special tubing? Mastar can supply standard shapes/thicknesses or customize special cross-sections to meet your needs.Quick Quote

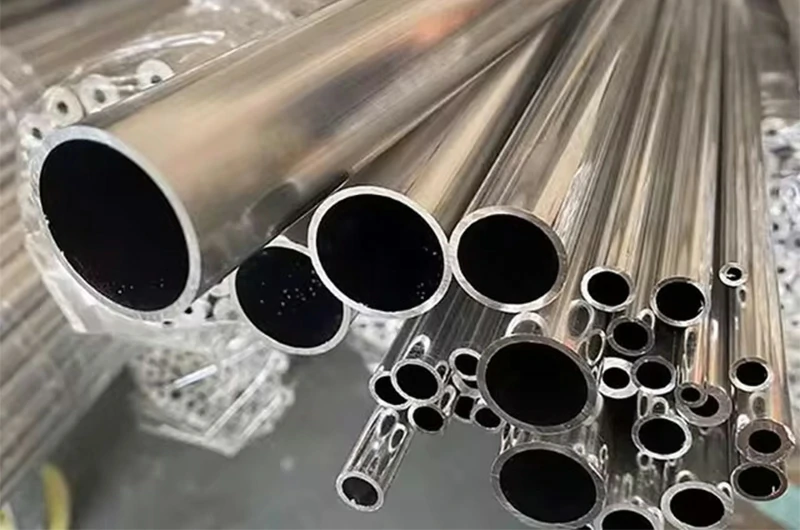

- 5456 aluminum round tube
- 5456 aluminum square tube
- 5456 aluminum rectangular tube
- 5456 oval aluminum tube
- 5456 thin wall aluminum tube
- 5456 thick wall aluminum tube
We offer round, square, rectangular, coil, and thin wall, thick wall aluminum tubes in various sizes. Click to browse more tube product and check available stock.
Mastar Metal - quality aluminum tube supplier
- Price Advantage: We support bulk purchases for retailers and metal distributors, offering discounts and rebate policies for B-end bulk buyers. Our pricing is transparent, ensuring a competitive edge with equivalent quality materials.
- Delivery Time: With a stock of tens of thousands of tons, standard sizes can be matched directly from existing inventory, ensuring quick shipping. Advanced equipment and a professional team help shorten delivery times, providing convenient logistics and timely arrivals.
- Quality Products: Using high-quality aluminum billets, we produce aluminum tubes through reverse extrusion processes combined with excellent heat treatment techniques, optimizing product strength and ductility while ensuring uniform cooling and annealing processes. This guarantees high tensile strength and excellent performance.
- Comprehensive Quality Testing: We strictly implement multiple inspection processes, including tensile strength, elongation performance, ultrasonic testing, and metallographic testing, ensuring that outgoing aluminum tubes meet AMS, EN, NADCAP, and other standard certifications.
- Customer Service: We provide comprehensive after-sales service to address customer concerns. Our experienced technical team offers professional consultation and guidance, establishing a complete customer service system to ensure a high-quality service experience.
Features of 5456 Aluminum Tube
- Medium Strength: Offers excellent strength and toughness, capable of withstanding both static and dynamic loads.
- Excellent Corrosion Resistance: Performs outstandingly in seawater and marine environments, ensuring long-term service life and structural integrity.
- Good Weldability: Easily welded using various welding techniques, minimizing the risk of cracks during the welding process.
- Exceptional Machinability: Easy to cut, drill, and form, suitable for manufacturing parts with complex shapes.
- Lightweight: Relatively low density, making it ideal for use in lightweight structural components, enhancing overall performance.
Best Application Areas for 5456 Aluminum Tube
- Shipbuilding: Widely used for hulls, decks, and marine components, 5456 aluminum tube offers excellent seawater resistance and strength.
- Offshore Industrial Platforms: Ideal for high-load supports and pipelines exposed to corrosive marine environments.
- Pressure Vessels: Commonly applied in gas, cryogenic, and liquid storage tanks where weldability and strength are critical.

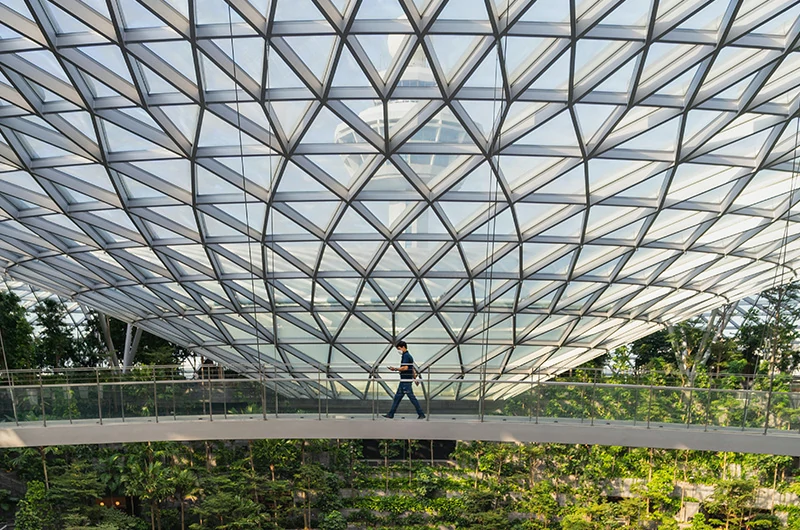

- Construction Industry: Used in building frames, curtain walls, and exterior structural components.
- Structural Supports: Preferred in bridges, towers, and industrial frameworks requiring lightweight strength and corrosion resistance.
5456 aluminum tube procurement guide
1.Comprehensive documentation
Msatar can provide detailed quality testing reports, including raw material certificates, laboratory test reports, fumigation reports, specification guides, commercial invoices, and guarantees, ensuring the quality transparency and traceability of each batch of products.
2.Fine export packaging
In international shipping, the quality of packaging directly affects whether goods can rust, corrode, scratch, deform, or suffer other damages during transport. Therefore, high-quality packaging materials are crucial. Msatar has years of export packaging experience, providing safe and reliable packaging solutions for thousands of businesses. By using fumigated wooden boxes, wooden pallets, and other high-quality packaging materials, our packaging damage rate is only one-third of the industry average.
3.Professional loading solutions
Our experienced order-following team can provide flexible and diverse loading solutions, including options for 20/40-foot containers or bulk ships. Regardless of your cargo specifications and shapes, we can customize a refined loading plan that saves an average of 15% container space, effectively reducing your logistics costs.
Product Guide of 5456 aluminum tube
Standard Specifications of 5456 aluminum tube
- EN 573-3 - 2009 Aluminium and aluminium alloys. Chemical composition and form of wrought products. Chemical composition and form of products
- ASTM B210 - Standard Specification for Aluminum and Aluminum-Alloy Drawn Seamless Tubes
- ASTM B241 - Standard Specification for Aluminum and Aluminum-Alloy Seamless Pipe and Seamless Extruded Tube
Chemical composition of 5456 aluminum tube(EN 573-2)
| Element | 5456A | 5456B |
| Si | 0.25 | 0.25 |
| Fe | 0.40 | 0.40 |
| Cu | 0.05 | 0.05 |
| Mn | 0.7-1.1 | 0.7-1.1 |
| Mg | 4.5-5.2 | 4.5-5.2 |
| Cr | 0.05-0.25 | 0.05-0.25 |
| Ni | - | - |
| Zn | 0.25 | 0.25 |
| Ti | 0.15 | 0.15 |
| Remarks | 4 | 18 |
| Others (Each) | 0.05 | 0.05 |
| Others (Total) | 0.15 | 0.15 |
| Al | Rem | Rem |
Physical properties of 5456 aluminum tube
| Properties | Value |
| Density | 2.66 g/cm³ |
| Melting point | 568.3 - 638 °C |
| Thermal conductivity | 116 W/m·K |
| Coefficient of thermal expansion | 23.9 µm/m·°C |
| Electrical conductivity | 29 % IACS |
Mechanical properties of 5456 seamless extrusion tube(ASTM B241)
| Properties | O | H111 | H112 |
| Tensile strength Rm/ksi | 41-53 | 42 | 41 |
| Yield strength Rp0.2/ksi | 19 | 26 | 19 |
| Elongation | 14% | 12% | 12% |
Mechanical properties of 5456 drawn seamless tube(ASTM B210)
| Properties | O |
| Tensile strength Rm/ksi | 41-53 |
| Yield strength Rp0.2/ksi | 19 |
| Elongation | 14% |
How is the Machinability of 5456 Aluminum Alloy?
5456 aluminum alloy offers excellent machinability, making it easy to cut and form using standard tools, which is ideal for manufacturing complex parts. It can be shaped through processes such as rolling, extrusion, and welding, meeting a wide range of design requirements. It also has good cold-working capabilities, which allow for strength improvements, though care should be taken to avoid excessive cold working to prevent stress corrosion cracking. Hot working at 218°C (425°F) can further enhance the performance of 5456 aluminum alloy.
How is the Welding Performance of 5456 Aluminum Alloy?
5456 aluminum alloy has excellent weldability, making it suitable for both MIG (Metal Inert Gas) and TIG (Tungsten Inert Gas) welding methods. It can form high-strength, corrosion-resistant weld joints, ensuring reliability even in harsh environments.
Additionally, the excellent welding characteristics of 5456 aluminum alloy result in minimal performance variation in the heat-affected zone during welding, which helps maintain the overall strength and toughness of the material. This makes it highly effective for meeting the high strength and durability requirements in shipbuilding and other structural applications requiring welding.
What Are the Advantages of 5456 Aluminum Alloy as a Typical Marine Alloy?
1. Excellent Corrosion Resistance:5456 aluminum alloy has a high magnesium content, which gives it outstanding corrosion resistance in saltwater and marine environments. This feature is crucial for the long-term durability and structural integrity of marine components, reducing the need for regular maintenance and protective coatings.
2. High Strength and Rigidity:With a tensile strength typically between 320-340 MPa, 5456 aluminum alloy outperforms 5083 aluminum alloy in terms of strength. This high strength makes it capable of withstanding heavy loads in marine operations, making it ideal for hull structures and other load-bearing components in ships.
3. Good Weldability:5456 aluminum alloy is easy to weld, ensuring strong and corrosion-resistant weld joints. This is critical for shipbuilding, where welded parts need to maintain their reliability in harsh environments. It ensures that the welded joints in marine structures are durable and resistant to environmental stresses.
4. Lightweight Material:The inherent lightweight properties of aluminum alloys help reduce the overall weight of the ship, improving fuel efficiency and payload capacity. This is becoming increasingly important in modern shipbuilding where lightweight and efficient performance are priorities.
5. Excellent Formability and Machinability:5456 aluminum alloy can be processed into complex shapes through rolling, extrusion, and other manufacturing methods, making it highly flexible for various marine construction and shipbuilding applications.
6. Shock Resistance:The toughness and uniform grain structure of 5456 aluminum alloy help it resist vibrations and impacts in marine environments, improving the overall safety of the vessel. The high magnesium content enhances ductility and toughness, allowing the material to absorb shock without easily breaking.
Applications of 5456 Aluminum Tube in Shipbuilding
5456 aluminum tube is widely used in several key components of shipbuilding, such as hull structures, deck frames, and marine platform supports. Its high strength and corrosion resistance make it particularly suitable for piping systems, equipment supports, and safety barriers or handrails, ensuring the stability and reliability of ships in harsh marine environments.
To support complete shipbuilding solutions, we also offer a full range of marine-grade aluminum materials, including 5083 and 5154 aluminum tubes, corrosion-resistant aluminum plates, marine aluminum profiles, and custom aluminum pipe fittings. These products are engineered to work seamlessly together, helping shipbuilders optimize structural integrity, corrosion resistance, and overall system compatibility across the vessel.
5083 vs 5456
- Strength: The tensile strength of 5154 is typically around 320-340 MPa, which is slightly higher than 5083 aluminum's 290-320 MPa, making 5154 better for high-strength applications.
- Corrosion Resistance: Both alloys exhibit excellent corrosion resistance, particularly in marine environments. However, 5154's higher magnesium content provides superior corrosion resistance in seawater environments.
- Weldability: Both alloys are easy to weld, but 5456 aluminum alloy outperforms 5154 in terms of post-weld strength and corrosion resistance, which is crucial for critical marine joints.
- Formability: 5083 aluminum alloy is more suitable for casting, while 5154 is better suited for rolling and extrusion, adapting better to complex shape manufacturing.
- Application Areas: 5083 is commonly used in marine vessels, pressure vessels, and marine engineering, while 5456 aluminum alloy is widely used in high-strength welded structures, storage tanks, and other high-load-bearing applications.
